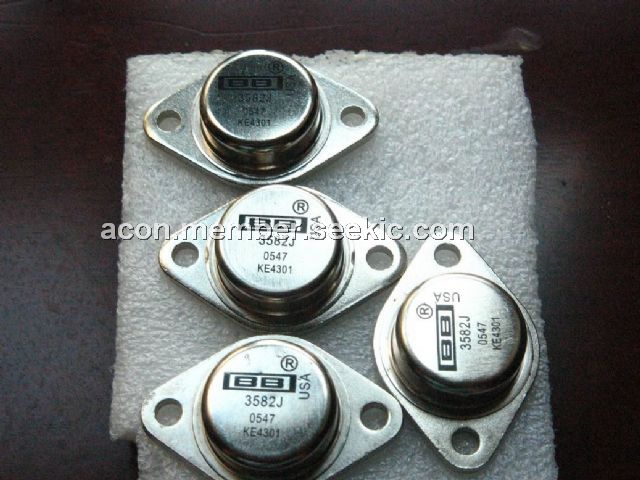

Product Summary

The 3582J is a high voltage, high speed hybrid operational amplifier designed for a wide variety of programmable power supply and transducer driver applications. The 3582J operates over a wide power supply range (±50V to ±150V) and provides outputs up to 75mA. The applications of the 3582J include programmable power supply, piezo-electric transducer driver and high voltage current source.

Parametrics

3582J absolute maximum ratings: (1)input offset voltage, vs temperature: ±3mV; vs temperature: ±23μV/℃; vs power supply: 20μV/V; vs time: 50μV/month; (2)specification: -25 to 85℃; (3)operating temperature range: -55 to 125℃; (4)storage temperature range: -55 to 125℃.

Features

3582J features: (1)wide power supply voltage: ±70V to ±150V; (2)output current to 75mA; (3)slew rate: 30V/μs; (4)FET input: IB = 20pA max; (5)thermal shut-down protection; (6)hermetic TO-3 package, isolated case.

Diagrams

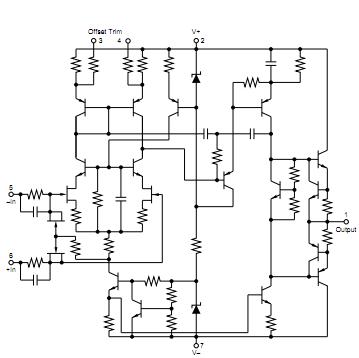

3582J block diagram
