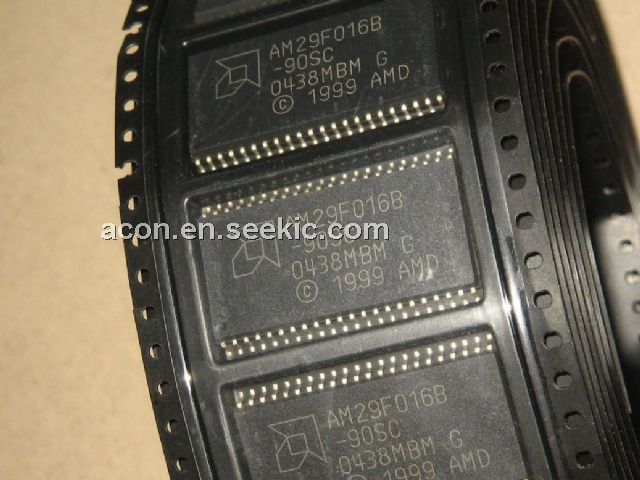

Product Summary
The AM29F016B-120FC is a 16 Mbit, 5.0 volt-only Flash memory organized as 2,097,152 bytes of 8 bits each. The 2 Mbytes of data are divided into 32 sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7. The AM29F016B-120FC is manufactured using AMDs 0.35 μm process technology. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F016B-120FC can also be programmed in standard EPROM programmers.
Parametrics
AM29F016B-120FC absolute maximum ratings: (1)VCC (Supply Voltage): -4.5 V to 5.5 V; (2)Junction Temperature Under Bias: TJ (max) = 130℃; (3)Operating Temperature: Commercial: 0℃ to +70℃, Industrial: –40℃ to +85℃.
Features
AM29F016B-120FC features: (1)5.0 V ± 10%, single power supply operation: Minimizes system level power requirements; (2)Manufactured on 0.35 μm process technology; (3)High performance: 120 ns access time; (4)Low power consumption: 25 mA typical active read current, 30 mA typical program/erase current,<1 mA typical standby current (standard access time to active mode); (5)Flexible sector architecture: 32 uniform sectors of 64 Kbytes each, Any combination of sectors can be erased, Supports full chip erase.

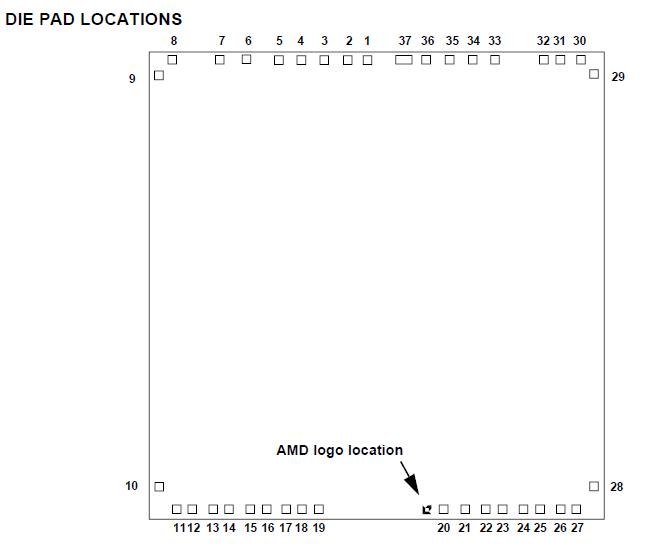

Diagrams
