UC3525ADW

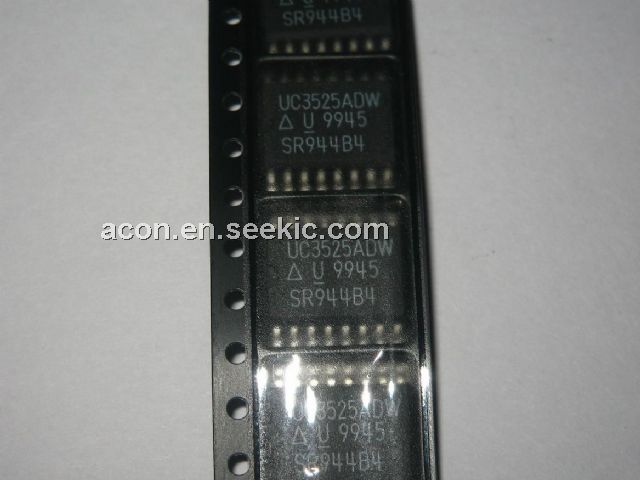

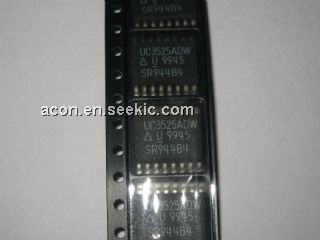

UC3525ADW, regulating pulse width modulator, 40 V, 500 mA, 500 kHz, COB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.50 / Piece

PartNumber:: UC3525ADW

Brand:: Texas Instruments - TI | Pack: COB | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Laneya's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-28

From Other Seller

Part Number:UC3525ADW
US $0.50 - 0.50
Quantity:

piece

Product Summary

The UC3525AN is a regulating pulse width modulator. Integrated circuits are designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. The on-chip +5.1V reference is trimmed to ±1% and the input common-mode range of the error amplifier includes the reference voltage, eliminating external resistors. A sync input to the UC3525AN allows multiple units to be slaved or a single unit to be synchronized to an external system clock. A single resistor between the CT and the discharge terminals provides a wide range of dead-time adjustment. The UC3525AN also features built-in soft-start circuitry with only an external timing capacitor required. A shutdown terminal controls both the soft-start circuitry and the output stages, providing instantaneous turn off through the PWM latch with pulsed shutdown, as well as soft-start recycle with longer shutdown commands.

Parametrics

UC3525AN absolute maximum ratings: (1)Supply Voltage, (+VIN): +40V; (2)Collector Supply Voltage (VC): +40V; (3)Logic Inputs: -0.3V to +5.5V; (4)Analog Inputs: -0.3V to +VIN; (5)Output Current, Source or Sink: 500mA; (6)Reference Output Current: 50mA; (7)Oscillator Charging Current: 5mA; (8)Power Dissipation at TA = +25℃: 1000mW; (9)Power Dissipation at TC = +25℃: 2000mW; (10)Operating Junction Temperature: -55℃ to +150℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Lead Temperature (Soldering, 10 seconds): +300℃.

Features

UC3525AN features: (1)8 to 35V Operation; (2)5.1V Reference Trimmed to ±1%; (3)100Hz to 500kHz Oscillator Range; (4)Separate Oscillator Sync Terminal; (5)Adjustable Deadtime Control; (6)Internal Soft-Start; (7)Pulse-by-Pulse Shutdown; (8)Input Undervoltage Lockout with Hysteresis; (9)Latching PWM to Prevent Multiple Pulses; (10)Dual Source/Sink Output Drivers.
