Product Summary

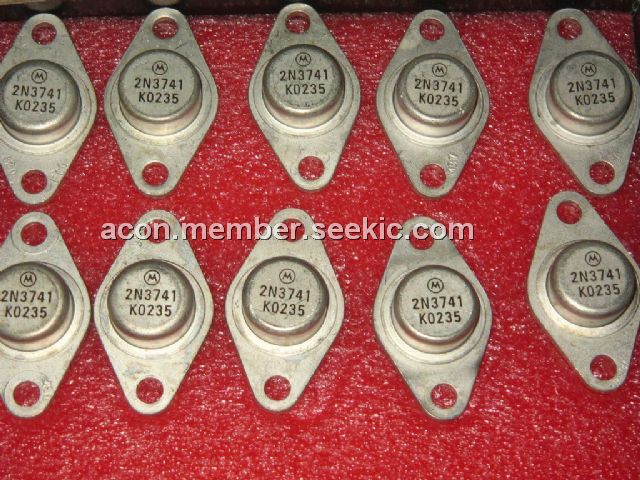

The 2N3741is a power transistor of bipolar metal.
Parametrics
Absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 80Vdc; (2)Collector-Base Voltage, VCEO: 60 80Vdc; (3)Emitter-Base Voltage, VEBO: 7.0Vdc; (4)Base Current, IB: 2.0Adc; (5)Collector Current, IC: 4.0Adc; (6)Total Power Dissipation at TC=+25℃, PT: 25W; (7)Total Power Dissipation at TC =+100℃, PT: 14W; (8)Operating & Storage Junction Temperature Range, TJ, Tstg: -65 to +200℃.
Features
Features: (1)Hermetically Package; (2)Low Saturation Voltage; (3)High Gain.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N3741R |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2N3741A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2N3741 |
Other |
|
Data Sheet |
Negotiable |
|
||||
