Product Summary

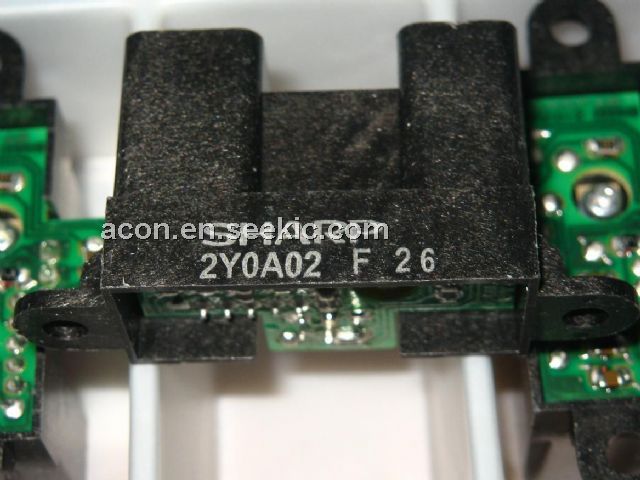

The 2Y0A02F26 is a long distance measuring sensor. Application is for detection of human body and various types of objects in home appliances, OA equipment, etc.
Parametrics
2Y0A02F26 absolute maximum ratings: (1)Supply voltage: −0.3 to +7 V; (2)Operating temperature: −10 to +60 °C; (3)Output terminal voltage: −0.3 to VCC +0.3 V; (4)Storage temperature: 40 to +70 °C.
Features
2Y0A02F26 features: (1)Less influence on the colors of reflected objects and their reflectivity, due to optical triangle measuring method; (2)Distance output type (Detection range:20 to 150cm); (3)An external control circuit is not necessary Output can be connected directly to a microcomputer.

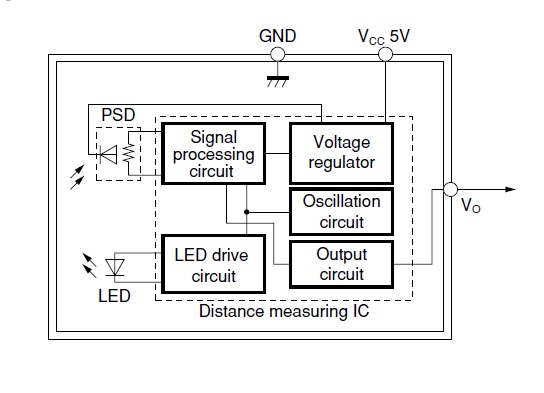

Diagrams
