Product Summary
The ATMEGA16-16AU is one member of the ATMEGA16 family which is designed as the low-power CMOS 8-bit microcontroller that achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. And this device combines a rich instruction set with 32 general purpose working registers and is manufactured using Atmel high density non-volatile memory technology.
Parametrics
Absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃;(2)Storage Temperature: -65℃ to +150℃;(3)Voltage on any Pin except RESET with respect to Ground: -0.5 V to VCC+0.5 V;(4)Voltage on RESET with respect to Ground: -0.5 V to +13.0 V;(5)Maximum Operating Voltage: 6.0 V;(6)DC Current per I/O Pin: 40.0 mA;(7)DC Current VCC and GND Pins: 200.0 mA.
Features
Features:(1)High Performance, Low Power AVR 8-Bit Microcontroller;(2)131 Powerful Instructions - Most Single Clock Cycle Execution;(3)32 x 8 General Purpose Working Registers;(4)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode;(5)8-channel 10-bit ADC in TQFP and QFN/MLF package;(6)Programmable Serial USART;(7)Programmable Watchdog Timer with Separate On-chip Oscillator;(8)Power-on Reset and Programmable Brown-out Detection;(9)28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF;(10)Temperature Range: -40℃ to 85℃.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

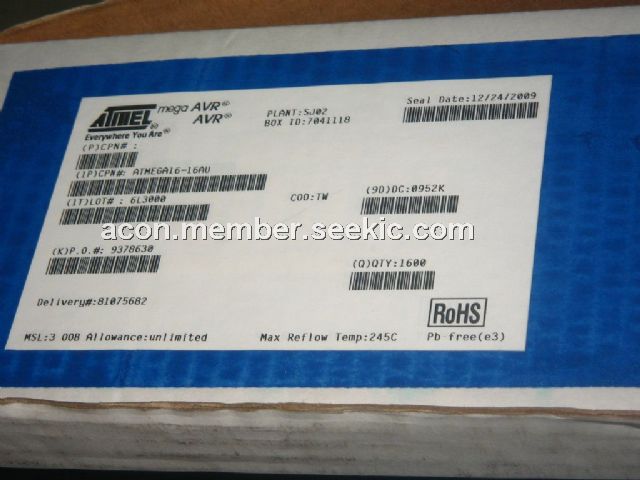

ATmega16-16AU |
Atmel |
8-bit Microcontrollers (MCU) 16kB Flash 0.5kB EEPROM 32 I/O Pins |
Data Sheet |
|
|
|||||||||||||
ATMEGA16-16AUR |
Atmel |
8-bit Microcontrollers (MCU) AVR,128KB FLASH 4KB EE 4KB SRAM |
Data Sheet |
|
|
