Product Summary

The 74HCT138D is a high-speed Si-gate CMOS device. It is pin compatible with low power Schottky TTL(LSTTL). The 74HCT138D is specified in compliance with JEDEC standard no. 7A.

Parametrics

74HCT138D absolute maximum ratings: (1)propagation delay(CL = 15 pF; VCC = 5 V):An to Yn:12ns to 17ns,E3 to Yn:14ns to 19ns; (2)input capacitance:3.5pF; (3)power dissipation capacitance per package:67pF.

Features

74HCT138D features: (1)Demultiplexing capability; (2)Multiple input enable for easy expansion; (3)Ideal for memory chip select decoding; (4)Active LOW mutually exclusive outputs; (5)Output capability: standard; (6)ICC category: MSI.

Diagrams

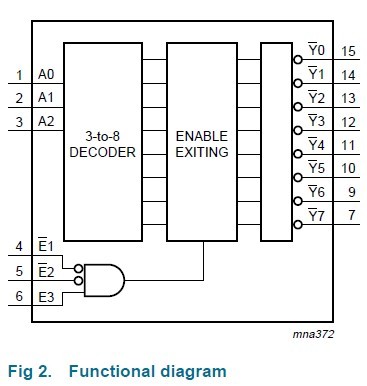

74HCT138D Functional diagram
