Product Summary

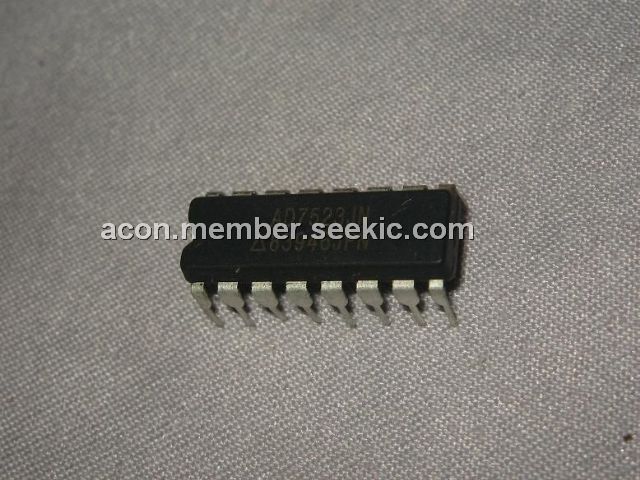

The AD7523JN is a monolithic, low cost, high performance, 8-bit and 10-bit accurate, multiplying digital-toanalog converter (DAC), in a 16 pin DIP. Intersil thin film resistors on CMOS circuitry provide 10-bit resolution (8-bit, 9-bit and 10-bit accuracy), with TTL/CMOS compatible operation. The AD7523JN accurates four quadrant multiplication, full military temperature range operation, full input protection from damage due to static discharge by clamps to V+ and GND, and very low power dissipation make it a very versatile converter. Low noise audio gain controls, motor speed controls, digitally controlled gain and digital attenuators are a few of the wide range of applications of the AD7523JN.

Parametrics

AD7523JN absolute maximum ratings: (1)Supply Voltage (V+ to GND): +17V; (2)VREF: ±25V; (3)Digital Input Voltage Range: V+ to GND; (4)Output Voltage Compliance: -100mV to V+.

Features

AD7523JN features: (1)10-Bit Linearity; (2)Low Gain and Linearity Temperature Coefficients; (3)Full Temperature Range Operation; (4)Static Discharge Input Protection; (5)TTL/CMOS Compatible; (6)Supply Range +5V to +15V; (7)Fast Settling Time at 25℃ 150ns (Max); (8)Four Quadrant Multiplication; (9)AD7533 Direct AD7520 Equivalent.

Diagrams

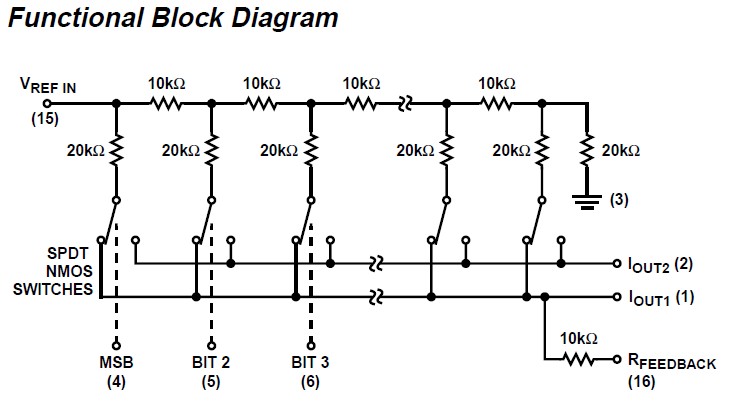

AD7523JN Functional Block Diagram
