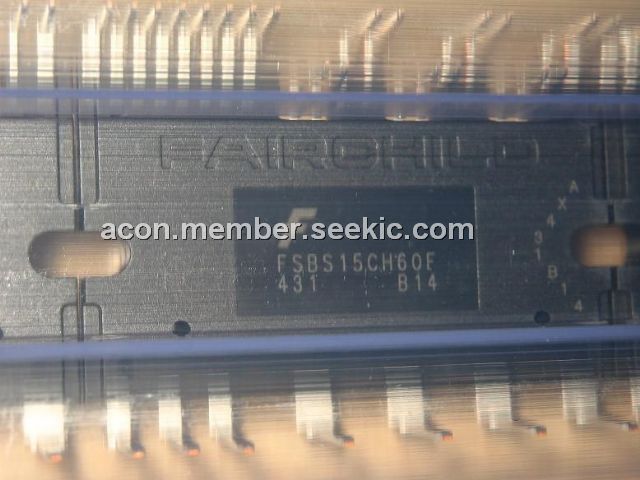

FSBS15CH60F

Smart Power Module(SPMTM) , low loss IGBTs, 600V-15A 3-phase, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: FSBS15CH60F

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Laneya's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-26

From Other Seller

Part Number:FSBS15CH60F
US $0.10 - 0.20
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FSBS15CH60F is an advanced smart power module (SPMTM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low power inverter-driven application like air conditioner and washing machine. The FSBS15CH60F combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and shortcircuit protection. The high speed built-in HVIC FSBS15CH60F provides optocoupler less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals.

Parametrics

FSBS15CH60F absolute maximum ratings: (1)Supply Voltage Applied between P- NU, NV, NW, VPN: 450V; (2)Supply Voltage (Surge) Applied between P- NU, NV, NW, VPN(Surge): 500V; (3)Collector-emitter Voltage, VCES: 600V; (4)Each IGBT Collector Current TC = 25℃, ±IC: 15 A; (5)Each IGBT Collector Current (Peak) TC = 25℃, Under 1ms Pulse Width, ±ICP: 30A; (6)Collector Dissipation TC = 25℃ per One Chip, PC: 32W; (7)Operating Junction Temperature, TJ: -20 to 125℃.

Features

FSBS15CH60F features: (1)UL Certified No.E209204(SPM27-BA package); (2)600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (3)Divided negative dc-link terminals for inverter current sensing applications; (4)Single-grounded power supply due to built-in HVIC; (5)Isolation rating of 2500Vrms/min; (6)Very low leakage current due to using ceramic substrate.
