Product Summary

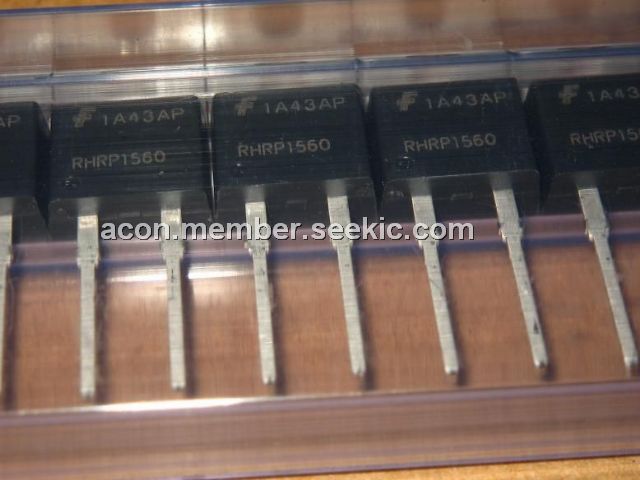

The RHRP1560 is hyperfast diode with soft recovery characteristics (trr < 35ns). It has half the recovery time of ultrafast diode and is silicon nitride passivated implanted epitaxial planar construction. The RHRP1560 is intended for use as freewheeling/clamping diode and rectifier in a variety of switching power supplies and other power switching application. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
Parametrics
RHRP1560 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 600V; (2)Working Peak Reverse Voltage, VRWM: 600V; (3)DC Blocking Voltage, VR: 600V; (4)Average Rectified Forward Current (TC = 140℃), IF(AV): 15A; (5)Repetitive Peak Surge Current (Square Wave, 20kHz), IFRM: 30A; (6)Nonrepetitive Peak Surge Current (Halfwave, 1Phase, 60Hz), IFSM: 200A; (7)Maximum Power Dissipation, PD: 100W; (8)Avalanche Energy, EAVL: 20 mJ; (9)Operating and Storage Temperature, TSTG, TJ: -65 to 175℃.
Features
RHRP1560 features: (1)Hyperfast with Soft Recovery, <35ns; (2)Operating Temperature, 175℃; (3)Reverse Voltage Up To 600V; (4)Avalanche Energy Rated; (5)Planar Construction.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RHRP1560 |
Fairchild Semiconductor |
Rectifiers 15A 600V |
Data Sheet |
|
|
||||||||||||
|
RHRP1560_Q |
Fairchild Semiconductor |
Rectifiers 15A 600V |
Data Sheet |
Negotiable |
|
||||||||||||
