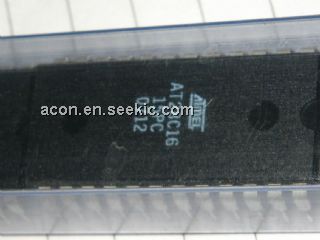

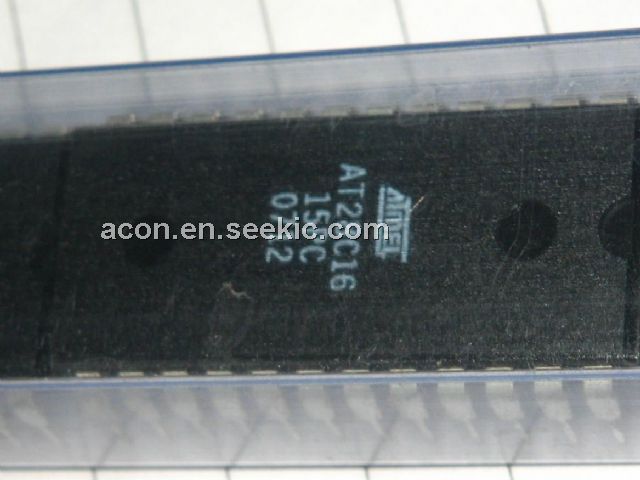

AT28C16

AT28C16, memory, 6.25 V, 30 mA, 150 ns, 200μs, COF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.50 / Piece

PartNumber:: AT28C16

Brand:: ATMEL Corporation - Atmel | Pack: COF | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Laneya's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-15

From Other Seller

Part Number:AT28C16
US $0.50 - 0.50
AT28C16-15JC ATMEL

US $2.75 - 3.06 / Piece
(0) Remove
AT28C16B-30JI

US $1.00 - 20.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

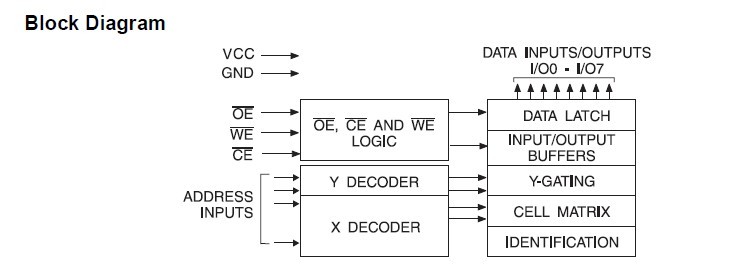

The AT28C16 is a 16K memory organized as 2,048 words by 8 bits. The AT28C16 is manufactured with reliable nonvolatile CMOS technology.The AT28C16 is accessed like a static RAM for the read or write cycles without the need of external components. During a byte write, the address and data are latched internally, freeing the microprocessor address and data bus for other operations. Following the initiation of a write cycle, the AT28C16 will go to a busy state and automatically clear and write the latched data using an internal control timer. The end of a write cycle can be determined by DATA POLLING of I/O7. Once the end of a write cycle has been detected, a new access for a read or a write can begin.

Parametrics

AT28C16 absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C16 features: (1)Fast Read Access Time - 150 ns; (2)Fast Byte Write - 200μs or 1 ms; (3)Self-Timed Byte Write Cycle: Internal Address and Data Latches; Internal Control Timer; Automatic Clear Before Write; (4)Direct Microprocessor Control: DATA POLLING; (5)Low Power: 30 mA Active Current; 100μA CMOS Standby Current; (6)High Reliability: Endurance: 104 or 105 Cycles; Data Retention: 10 Years; (7)5V ±10% Supply; (8)CMOS & TTL Compatible Inputs and Outputs; (9)JEDEC Approved Byte Wide Pinout; (10)Commercial and Industrial Temperature Ranges.
