Product Summary

The 2N7002K is a 60v n-channel enhancement mode mosfet.

Parametrics

2N7002K absolute maximum ratings: (1)Drai n-Source Voltage V D S: 60 V; (2)Gate-Source Voltage V G S: +20 V; (3)Conti nuous Drai n Current ID: 300 mA; (4)Pulsed Drai n Current I D M: 2000 mA; (5)Maximum Power Di ssi pati on: TA =25℃ 350mW; TA =75℃ PD 210 mW; (6)Operati ng Juncti on and Storage Temperature Range TJ ,T S T G: -55 to + 150 ℃; (7)Junction-to Ambient Thermal Resistance(PCB mounted)2 Rθ J A: 357 ℃/W.

Features

2N7002K features: (1)RDS(ON), VGS＠10V,IDS＠500mA=3 RDS(ON), VGS＠4.5V,IDS＠200mA=4 Advanced Trench Process Technology; (2)High Density Cell Design For Ultra Low On-Resistance; (3)Very Low Leakage Current In Off Condition; (4)Specially Designed for Battery Operated Systems, Solid-State Relays; (5)Drivers : Relays, Displays, Lamps, Solenoids, Memories, etc.; (6)ESD Protected 2KV HBM; (7)Component are in compliance with EU RoHS 2002/95/EC directives.

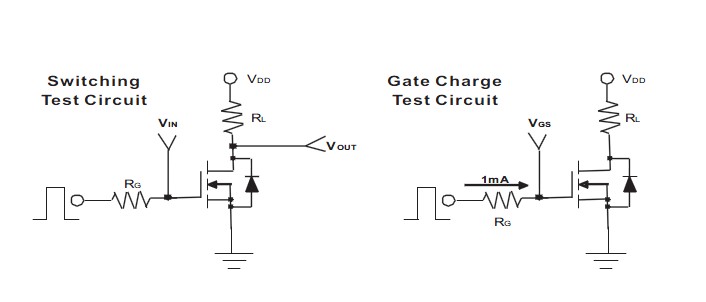

Diagrams

2N7002K pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N7002K
2N7002K
Fairchild Semiconductor
MOSFET 60V, 115mA N-Chan
Data Sheet
0-1: $0.15
1-25: $0.14
25-100: $0.08
100-250: $0.05
2N7002K,215
2N7002K,215
NXP Semiconductors
MOSFET TAPE13 PWR-MOS
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
2N7002K-7
2N7002K-7
Diodes Inc.
MOSFET N-Channel
Data Sheet
0-1: $0.13
1-10: $0.12
10-100: $0.07
100-250: $0.04
2N7002K-7-99
2N7002K-7-99
Other

Data Sheet
Negotiable
2N7002KA
2N7002KA
Other

Data Sheet
Negotiable
2N7002KDW
2N7002KDW
Other

Data Sheet
Negotiable
2N7002K-T1-E3
2N7002K-T1-E3
Vishay/Siliconix
MOSFET 60V 0.3A
Data Sheet
0-1: $0.26
1-10: $0.16
10-100: $0.13
100-250: $0.11
2N7002KT1G
2N7002KT1G
ON Semiconductor
MOSFET NFET SOT23 60V 380mA 7mOhm
Data Sheet
0-1: $0.14
1-25: $0.09
25-100: $0.07
100-500: $0.04
