Product Summary

The 2SD882-AZ is a NPN silicon transistor suited or the output stage of 3 Watts audio amplifier, voltage regulator, DC-DC converter and relay driver.

Parametrics

2SD882-AZ absolute maximum ratings: (1)storage temperature: -55 to +150 ℃; (2)junction temperature: 150 ℃ max; (3)maximum power dissipations: total power dissipation (Ta=25℃): 1.0 W, total power dissipation (Tc=25℃): 10 W; (4)maximum voltage and currents (Ta=25℃): VCBO: 40 V, VCEO: 30 V, VEBO=5.0 V.

Features

2SD882-AZ features: (1)low saturation voltage. VCE(sat)≦0.5 V (@IC=2 A, IB=0.2 A); (2)excellent hFE linearity and high hFE. hFE: 60 to 400 (@VCE=2 V, IC=1 A); (3)less cramping space required due to small and thin package and reducing the trouble for attachment to a radiator.

Diagrams

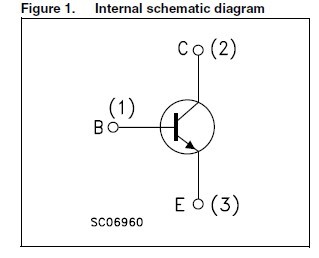

2SD882-AZ Internal schematic diagram
