Product Summary

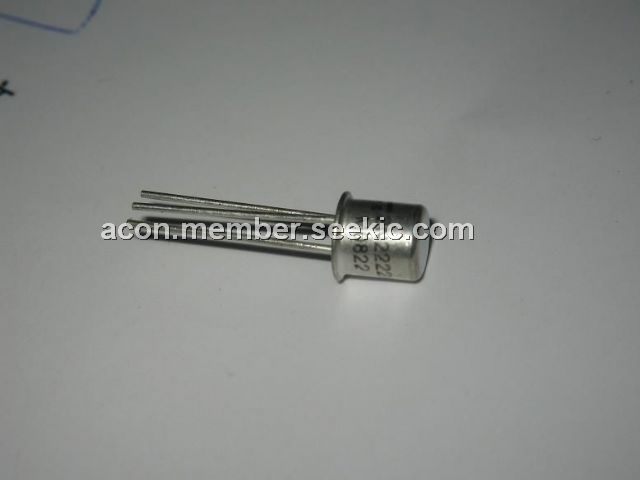

The 2n2222 is a NPN switching transistor in a TO-18 metal package. The application of it include: Linear amplification and switching.

Parametrics

2n2222 specifications: (1)On the conditions of ICon = 150 mA; IBon = 15 mA, IBoff = -15 mA, ton turn-on time: max=35 ns; (2)td delay time: max=10 ns; (3)tr rise time: max=25 ns; (4)toff turn-off time: max=250 ns; (5)ts storage time: max=200 ns; (6)tf fall time: max=60 ns.

Features

2n2222 features: (1)High current (max. 800 mA); (2)Low voltage (max. 40 V).

Diagrams
