Product Summary

The 817A is a PNP transistor manufactured using Planar Technology resulting in rugged high performance device. Applications are (1)Aoltage regulation; (2)Relay driver; (3)Generic switch.

Parametrics

817A absolute maximum ratings: (1)Collector-Base Voltage (IE=0): -80 V; (2)Collector-Emitter Voltage (IE=0): -80 V; (3)Emitter-Base Voltage (IC=0): -5 V; (4)Collector Current: -1.5 A; (5)Collector Peaak Current (tp<5ms): -2 A; (6)Base Current: -0.3 A; (7)Base Peak Current (tp<5ms): -0.6 A; (8)Total Dissipation at Tamb = 25°C: 1.4 W; (9)Operating Junction Temperature Storage Temperature: -65 to 150 °C.

Features

817A features: (1)Surface-mounting devices in medium power sot-223 and sot-89 packages; (2)Available in tape & reel packing.

Diagrams

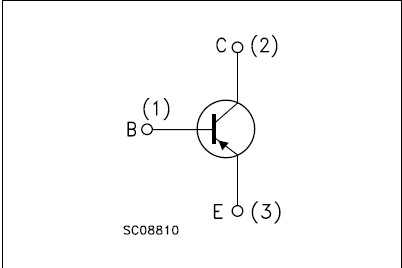

817A pin connection
