Product Summary

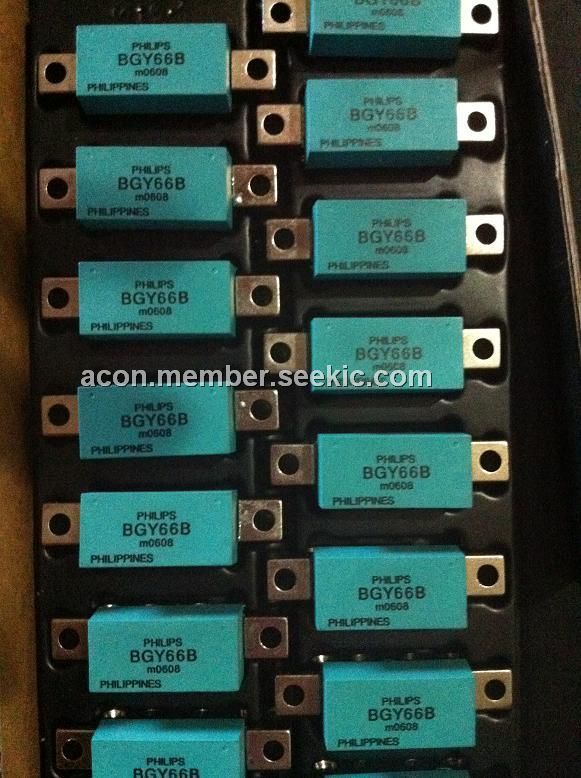

The BGY66B is a CATV amplifier module. It is designed for applications in CATV systems with a bandwidth of 5 to 120 MHz operating with a voltage supply of 24 V (DC). The applications of the BGY66B include: intended as a reverse amplifier for use in two-way systems.
Parametrics
BGY66B absolute maxing ratings: (1)On the condition of f = 10 MHz, Gp power gain: min=24.5dB, max=25.5dB; (2)SL slope cable equivalent: min=-0.2dB, max=+0.5dB; (3)FL flatness of frequency response: max=±0.2dB; (4)S11 input return losses: min=20dB; (5)S22 output return losses: min=20dB; (6)Itot total current consumption (DC): min=115mA, max=135mA.
Features
BGY66B features: (1)Excellent linearity; (2)Extremely low noise; (3)Silicon nitride passivation; (4)Rugged construction; (5)Gold metallization ensures excellent reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGY66B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BGY66B,112 |
NXP Semiconductors |
RF Amplifier BULK CATV |
Data Sheet |
|
|
||||||||||||
