Product Summary
The ACT30BHT is a high performance green-energy offline power supply controller. It features a scalable driver for driving external NPN or MOSFET transistors for line voltage switching.
Parametrics
ACT30BHT absolute maximum ratings: (1)VDD, FREQ Pin Voltage:-0.3V to 6V ; (2)VDD Current:20 mA ; (3)DRV, DRV1, DRV2 Voltage:-0.3V to 18V ; (4)Continuous DRV, DRV1, DRV2 Current:Internally limited; (5)Operating Junction Temperature:-40℃ to 150℃; (6)Storage Temperature:-55℃ to 150℃ ; (7)Lead Temperature (Soldering, 10 sec):300℃; (8)Maximum Power Dissipation:0.6W.
Features
ACT30BHT features: (1)Lowest Total Cost Solution ; (2)0.15W Standby Power ; (3)Emitter Drive Allows Safe NPN Flyback Use ; (4)Hiccup Mode Short Circuit ; (5)Current Mode Operation ; (6)Over-Current Protection ; (7)Under-voltage Protection with Auto-restart ; (8)Proprietary Scalable Output Driver ; (9)Flexible Packaging Options (including TO-92) ; (10)65kHz or 100kHz Switching Frequency ; (11)Selectable 0.4A to 1.2A Current Limit.

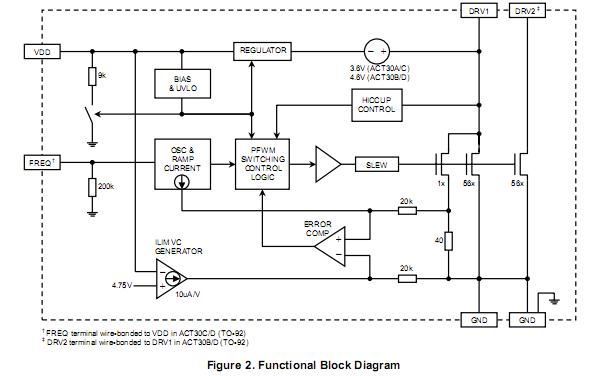

Diagrams
