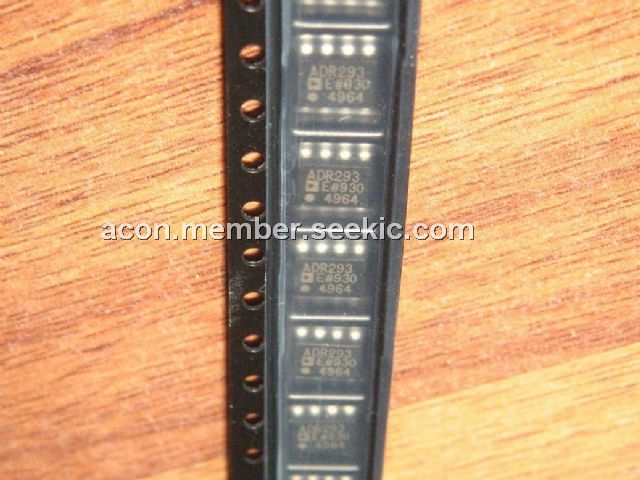

ADR293

ADR293, Low Noise Micropower Precision Voltage Reference, TO, 5.0V, 18V, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: ADR293

Brand:: Analog Devices - ADI | Pack: TO | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Laneya's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-22

From Other Seller

Part Number:ADR293
US $0.10 - 0.20
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

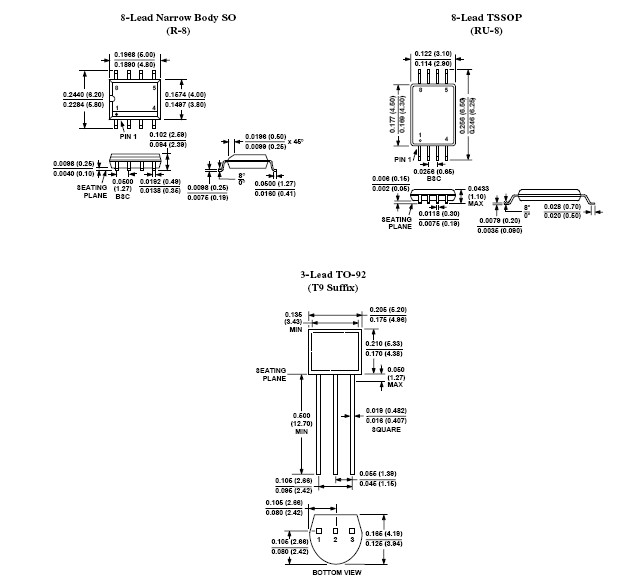

The ADR293 is a low noise, micropower precision voltage reference that utilizes an XFET. (eXtra implanted junction FET) reference circuit. The new XFET architecture offers significant performance improvements over traditional bandgap and Zener-based references. Improvements include: one quarter the voltage noise output of bandgap references operating at the same current, very low and ultralinear temperature drift, low thermal hysteresis and excellent long-term stability. The ADR293 is a series voltage reference providing stable and accurate output voltage from a 6.0 V supply. Quiescent current is only 15 mA max, making this device ideal for battery powered instrumentation. Three electrical grades are available offering initial output accuracy of ±3 mV, ±6 mV, and ±10 mV. Temperature coefficients for the three grades are 8 ppm/℃, 15 ppm/℃ and 25 ppm/℃ max. Line regulation and load regulation are typically 30 ppm/V and 30 ppm/mA, maintaining the reference’s overall high performance. The ADR293 is specified over the extended industrial temperature range of -40℃ to +125℃. This device is available in the 8-lead SOIC, 8-lead TSSOP and the TO-92 package.

Parametrics

ADR293 absolute maximum ratings: (1)Supply Voltage : +18 V; (2)Output Short-Circuit Duration : Indefinite; (3)Storage Temperature Range T9, R, RU Package : -65 to +150℃; (4)Operating Temperature Range : -40 to +125℃; (5)Junction Temperature Range T9, R, RU Package : -65 to +125℃; (6)Lead Temperature (Soldering, 60 sec) : +300℃.

Features

ADR293 features: (1)Voltage Output 5.0 V; (2)6.0 V to 15 V Supply Range; (3)Supply Current 15 μA Max; (4)Initial Accuracy ±3 mV Max; (5)Temperature Coefficient 8 ppm/℃ Max; (6)Low Noise 15 μV p–p Typ (0.1 Hz to 10 Hz); (7)High Output Current 5 mA Min; (8)Temperature Range -40 to +125℃; (9)REF02/REF19x Pinout.
