Product Summary
The ADA10000R is a monolithic IC intended for use in applications requiring high linearity, such as Cellular Telephone Base Station Driver Amplifiers, CATV Fiber Receiver and Distribution Amplifiers, and CATV Drop Amplifiers. Offered in both a modified 16 lead SOIC package and SOT-89 package, ADA10000R is well suited for use in amplifiers where small size, reduced component count, and high reliability are important.
Parametrics
ADA10000R absolute maximum ratings: (1)Supply: 0 to +12VDC; (2)RF Power at Input: ±10dBm; (3)Storage Temperature -65 +150℃.
Features
ADA10000R features: (1)High Linearity : +15dBm IIP3 (+8V supply); (2)Low Distortion; (3)Low Noise Figure: 2.0dB; (4)15 dB Gain; (5)Single +4V to +9V Supply; (6)Wide Bandwidth: 50MHz to 1GHz; (7)SOIC-16 and SOT-89 Package Options.

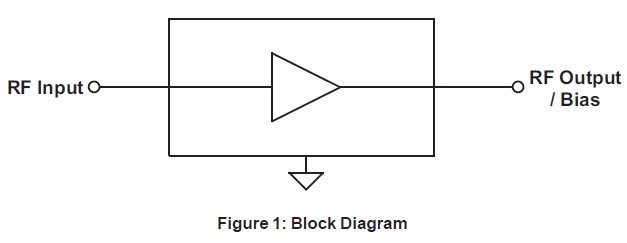

Diagrams
 |
