Product Summary

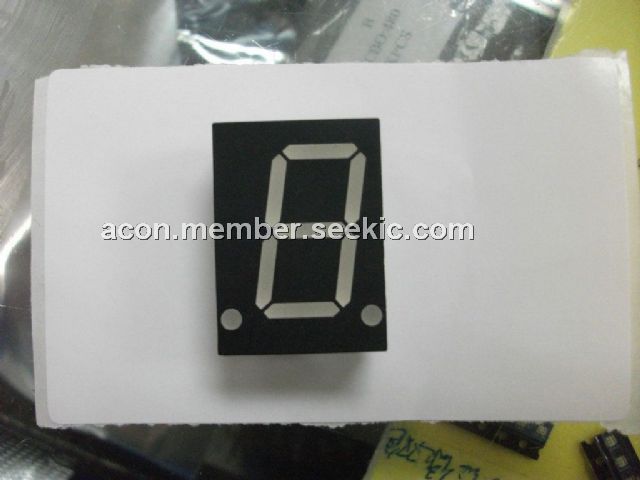

The SA56-21SRWA is a 14.2mm (0.56inch) seven segment display. The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode.

Parametrics

Absolute maximum ratings: (1)Power dissipation: 100mW; (2)DC Forward Current: 30mA; (3)Peak Forward Current: 155mA; (4)Reverse Voltage: 5V; (5)Operating / Storage Temperature: -40℃ to +85℃; (6)Lead Solder Temperature: 260℃ For 5 Seconds.

Features

Features: (1)0.56 inch digit height ; (2)low current operation; (3)excellent character appearance; (4)easy mounting on p.c. boards or sockets; (5)I.C.compatible; (6)categorized for luminous intensity; (7)mechanically rugged; (8)standard:gray face, white segment; (9)RoHS compliant.

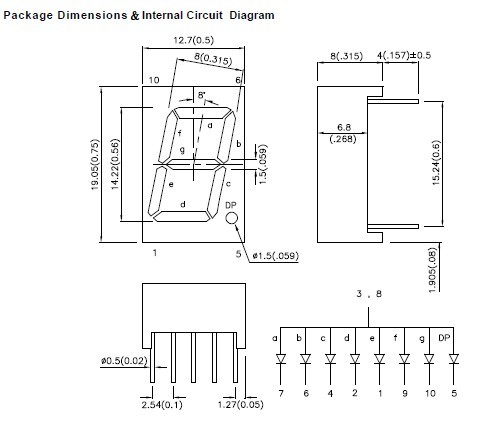

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SA56-21SRWA
SA56-21SRWA

Kingbright

LED Displays & Accessories .56 RED COMMON ANODE

Data Sheet

0-1: $0.71
1-10: $0.68
10-100: $0.67
100-200: $0.62
