Product Summary

The ADS8341E is a 4-channel, 16-bit sampling Analog-to-Digital (A/D) converter with a synchronous serial interface. Typical power dissipation is 8mW at a 100kHz throughput rate and a +5V supply. The reference voltage (VREF) can be varied between 500mV and VCC, providing a corresponding input voltage range of 0V to VREF. The device includes a shutdown mode that reduces power dissipation to under 15μW. The ADS8341E is tested down to 2.7V operation. Low power, high speed, and an onboard multiplexer make the ADS8341E ideal for battery-operated systems such as personal digital assistants, portable multi-channel data loggers, and measurement equipment. The serial interface also provides low-cost isolation for remote data acquisition. The ADS8341E is available in an SSOP-16 package and is ensured over the -40℃ to +85℃ temperature range.

Parametrics

ADS8341E absolute maximum ratings: (1)+VCC to GND: -0.3V to +6V; (2)Analog Inputs to GND: -0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: -0.3V to +6V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS8341E features: (1)pin for pin with ads7841; (2)single supply: 2.7v to 5v; (3)4-channel single-ended or 2-channel differential input; (4)up to 100khz conversion rate; (5)86db sinad; (6)serial interface; (7)ssop-16 package.

Diagrams

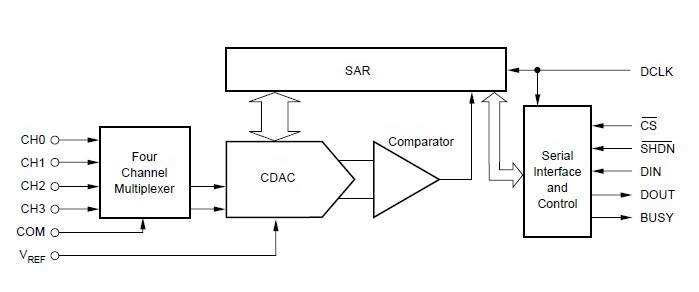

ADS8341E diagram
