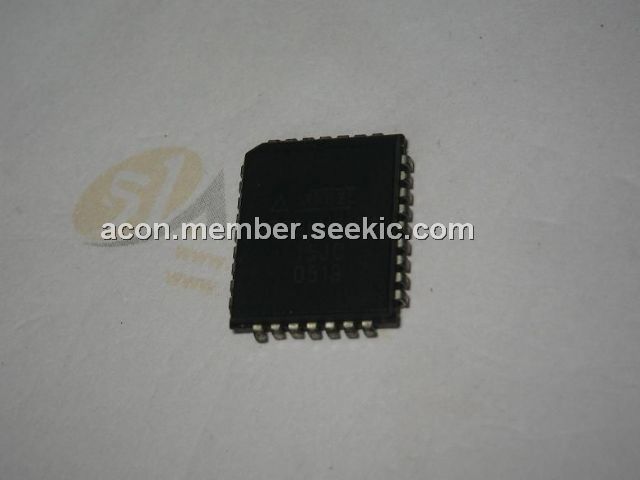

AT29LV010A15JC

Product Summary

The AT29LV010A15JC is a 3-volt-only in-system Flash programmable and erasable read only memory (Flash). Its 1 megabit of memory is organized as 131,072 bytes by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT29LV010A15JC offers access times to 150 ns with power dissipation of just 54 mW over the commercial temperature range. When the device is deselected, the CMOS standby current is less than 20 mA. The device endurance is such that any sector can typically be written to in excess of 10,000 times. To allow for simple in-system reprogrammability, the AT29LV010A15JC does not require high input voltages for programming. Three-volt-only commands determine the operation of the device. Reading data out of the device is similar to reading from an EPROM. Reprogramming the AT29LV010A15JC is performed on a sector basis; 128-bytes of data are loaded into the device and then simultaneously programmed.

Parametrics

AT29LV010A15JC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on A9 (including NC Pins) with Respect to Ground: -0.6V to +13.5V.

Features

AT29LV010A15JC features: (1)Single Supply Voltage, Range 3V to 3.6V; (2)3-Volt-Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time - 150 ns; (5)Low Power Dissipation. 15 mA Active Current. 20 mA CMOS Standby Current; (6)Sector Program Operation. Single Cycle Reprogram (Erase and Program). 1024 Sectors (128 bytes/sector). Internal Address and Data Latches for 128-Bytes; (7)Two 8 KB Boot Blocks with Lockout; (8)Fast Sector Program Cycle Time - 20 ms; (9)Internal Program Control and Timer; (10)DATA Polling for End of Program Detection; (11)Typical Endurance > 10,000 Cycles; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Commercial and Industrial Temperature Ranges.

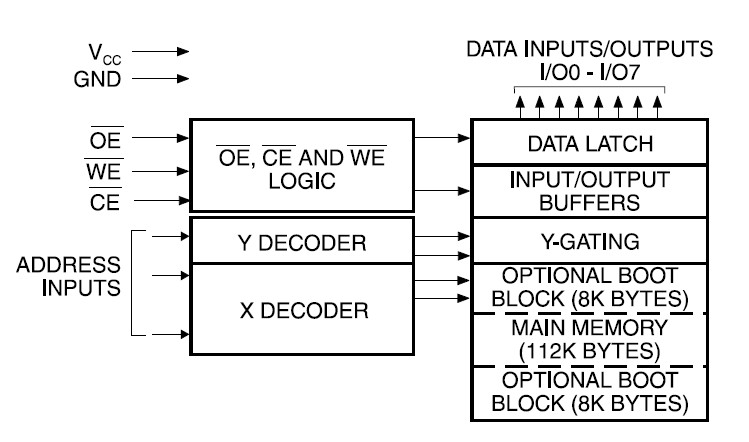

Diagrams
