Product Summary
The BGE67BO is an optical receiver module. Hybrid high dynamic range optical amplifier module in a SOT115P package operating at a voltage supply of +24 V (DC). The module contains a monomode optical input suitable for wavelengths from 1290 to 1600 nm, a terminal to monitor the pin diode current and an electrical output with an impedance of 75 Ω. The optical fibre is terminated by an SC/APC connector and partly reinforced by a 3 mm diameter Kevlar buffer.
Parametrics
BGE67BO absolute maximum ratings: (1)f frequency range: 5, 300 MHz; (2)Tstg storage temperature: -40, +85 °C; (3)Tmb operating mounting base temperature: -20, +85 °C; (4)Pin optical input power continuous: - 5 mW.
Features
BGE67BO features: (1)Excellent linearity; (2)Extremely low noise; (3)Excellent flatness; (4)Standard CATV outline; (5)Rugged construction; (6)Gold metallization ensures excellent reliability.

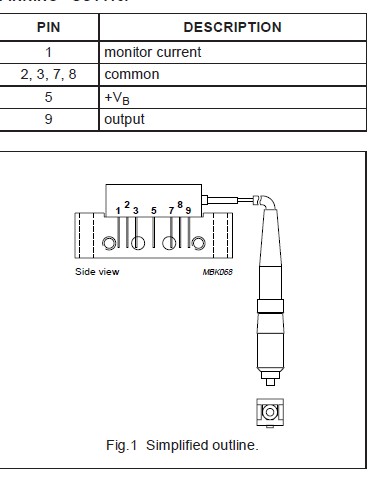

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGE67BO |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
BGE67BO |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
BGE67SC |
Other |
|
Data Sheet |
Negotiable |
|
||||
