Product Summary
The C503C-WAS-CBADB151 is a 5-mm round LED. Applications are (1)Torch; (2)Light Strip; (3)Channel Letter; (4)Retail Display Lighting.
Parametrics
C503C-WAS-CBADB151 absolute maximum ratings: (1)Forward Current: 30 mA; (2)Peak Forward Current Note: 100 mA; (3)Reverse Voltage: 5 V; (4)Power Dissipation: 120 mW; (5)Operation Temperature: -40 to +95 °C; (6)Storage Temperature: -40 to +100 °C; (7)Lead Soldering Temperature: Max. 260°C for 3 sec. max (3 mm from the base of the epoxy bulb).
Features
C503C-WAS-CBADB151 features: (1)Size (mm): 5; (2)Color Temperatures (K): »»Cool White: Min. (4600)/ Typical (9000); (3)Luminous Intensity (mcd)»»C503C-WAS/WAN (16800-39500); (4)Viewing Angle: 15 degree; (5)Lead-Free; (6)RoHS-Compliant.

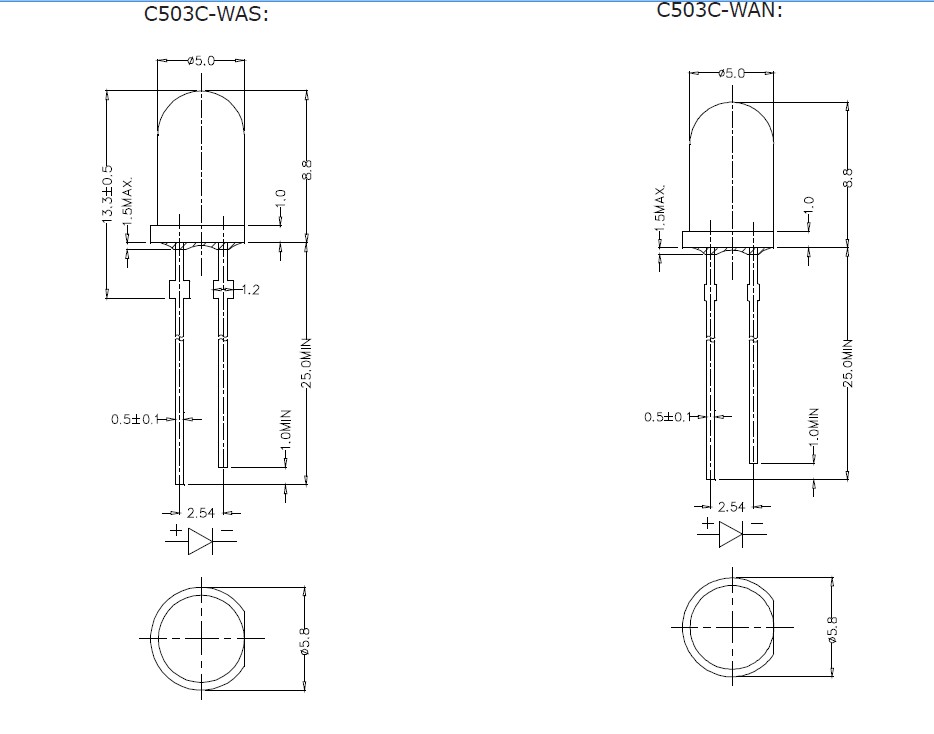

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() C503C-WAS-CBADB151 |
![]() Cree, Inc. |
![]() Standard LED - Through Hole White Round LED |
![]() Data Sheet |
![]()
|
|
||||||||||||
