DAC8531E

Product Summary

The DAC8531E is a low-power, single, 16-bit buffered voltage output Digital-to-Analog Converter (DAC). Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC8531E uses a versatile three-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI., QSPI., Microwire., and Digital Signal Processor (DSP) interfaces. The DAC8531E requires an external reference voltage to set the output range of the DAC. The DAC8531E incorporates a power-on reset circuit that ensures that the DAC output powers up at 0V and remains there until a valid write takes place to the device. The DAC8531E contains a power-down feature, accessed over the serial interface, that reduces the current consumption of the device to 200nA at 5V. The low power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment. The power consumption is 2mW at 5V reducing to 1μW in power-down mode. The DAC8531E is available in both MSOP-8 and 3x3 SON-8 (same size as QFN) packages.

Parametrics

DAC8531E absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)Digital Input Voltage to GND: -0.3V to +VDD + 0.3V; (3)VOUT to GND: -0.3V to +VDD + 0.3V; (4)Operating Temperature Range: -40℃ to +105℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Junction Temperature Range (TJ max): +150℃; (7)Power Dissipation: (TJ max - TA)/θJA; (8)θJA Thermal Impedance: 206℃/W; (9)θJC Thermal Impedance: 44℃/W; (10)Lead Temperature, Soldering: Vapor Phase (60s): +215℃; Infrared (15s): +220℃.

Features

DAC8531E features: (1)microPower operation: 250μA at 5V; (2)power-on reset to zero; (3)power supply: +2.7V to +5.5V; (4)ensured monotonic by design; (5)settling time: 10μs to ±0.003 FSR; (6)low-power serial interface with schmitt-triggered inputs; (7)on-chip output buffer amplifier, rail-to-rail operation; (8)sync interrupt facility; (9)packages: MSOP-8 and 3x3 SON-8 (same size as QFN).

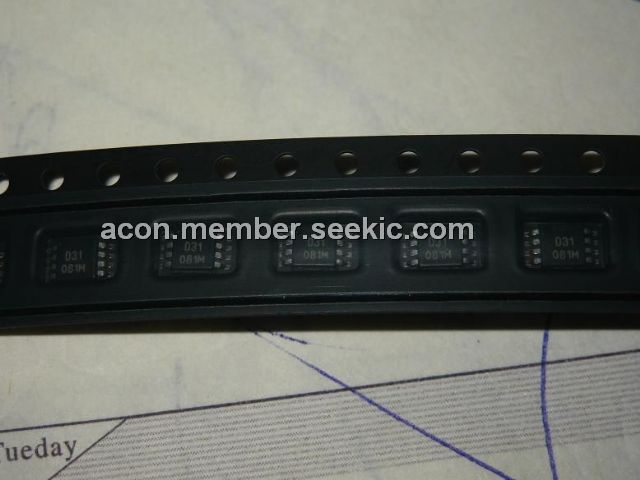

Diagrams
