Product Summary

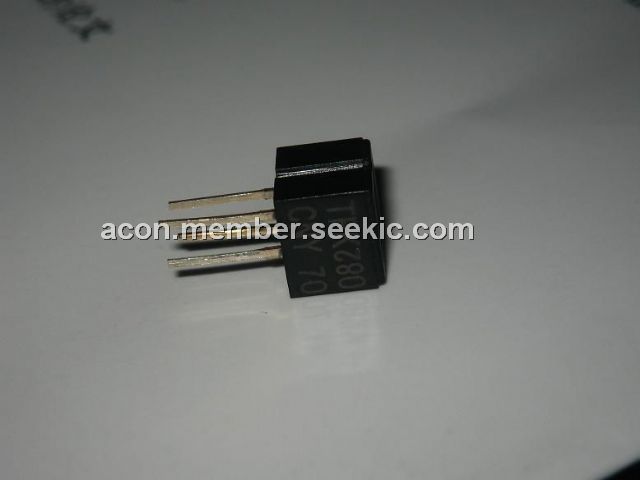

The CNY70 is a reflective optical sensor with transistor output. It has a compact construction where the emitting light source and the detector are arranged in the same direction to sense the presence of an object by using the reflective IR beam from the object. The applications of the CNY70 include: optoelectronic scanning and switching devices i.e., index sensing, coded disk scanning etc. (optoelectronic encoder assemblies for transmission sensing).
Parametrics
CNY70 absolute maxing ratings: (1)Reverse voltage VR: 5 V; (2)Forward current IF: 50 mA; (3)On the condition of tp≤10μs, Forward surge current IFSM: 3 A; (4)On the condition of Tamb≤25℃, Power dissipation PV: 100 mW; (5)Junction temperature Tj: 100℃.
Features
CNY70 features: (1)Compact construction in center-to-center spacing of 0.1; (2)No setting required; (3)High signal output; (4)Low temperature coefficient; (5)Detector provided with optical filter; (6)Current Transfer Ratio (CTR) of typical 5%.
