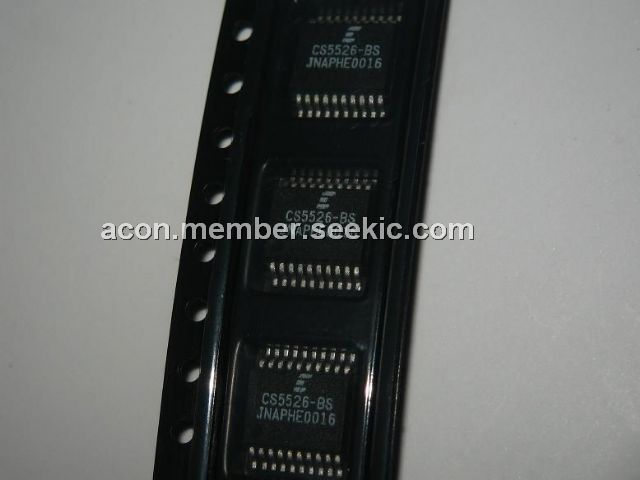

Product Summary
The CS5526-BS is a highly integrated △∑ A/D converter which includes an instrumentation amplifier, a PGA (programmable gain amplifier), eight digital filters, and self and system calibration circuitry.
Parametrics
CS5526-BS absolute maxing ratings: (1)DC Power Supplies Positive Digital VD+: min=-0.3V, max=+6.0V; Positive Analog VA+: min=-0.3V, max=+6.0V; (2)Negative Bias Voltage Negative Potential NBV: min=+0.3V, max=-3.0 V; (3)Input Current, Any Pin Except Supplies IIN: max=±10 mA; (4)Output Current IOUT: max=±25 mA; (5)Power Dissipation PDN: max=500 mW; (6)Analog Input Voltage VREF pins VINR: min=-0.3V, max=(VA+) +0.3V; AIN Pins VINA: min=NBV - 0.3V; max=(VA+) + 0.3V; (7)Digital Input Voltage VIND: min=-0.3V, max=(VD+) + 0.3 V; (8)Ambient Operating Temperature TA: min=-40℃; max=85℃; (9)Storage Temperature Tstg: min=-65℃, max=150℃.
Features
CS5526-BS features: (1)Programmable Output Word Rates: 3.76 Sps to 202 Sps (XIN = 32.768 kHz); 11.47 Sps to 616 Sps (XIN = 100 kHz); (2)Output Settles in One Conversion Cycle; (3)Simultaneous 50/60 Hz Noise Rejection; (4)System and Self-calibration with Read/Write Registers; (5)Single +5 V Analog Supply +3.0 V or +5 V Digital Supply; (6)Low-power Mode Consumption: 4.9 mW; 1.8 mW in 1 V, 2.5 V, and 5 V Input Ranges.

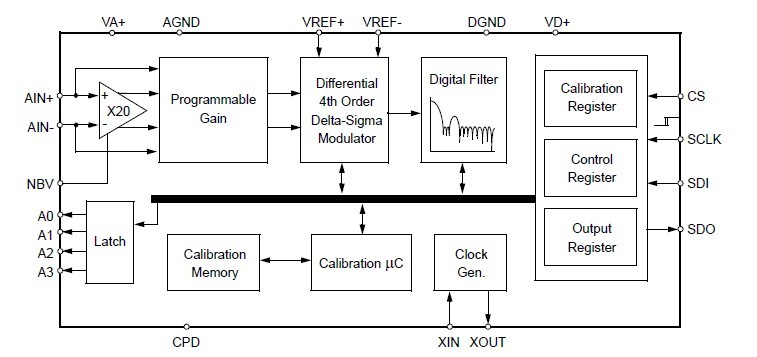

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5526-BS |
Cirrus Logic |
ADC (A/D Converters) 20-Bit Delta Sigma Multi-Range ADC |
Data Sheet |
