Product Summary

The GP2Y0A02YKF6 is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. The GP2Y0A02YKF6 outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor. Applications are (1)Mobile phone; (2)Videophone; (3)Video surveillance; (4)Medical; (5)Machine Vision; (6)Toys; (7)PDA; (8)Biometry; (9)Bar Code Reader; (10)Lighting Control.

Parametrics

GP2Y0A02YKF6 absolute maximum ratings: (1)Supply Voltage VCC: -0.3 to 30 V; (2)Voltage at CS, BIAS, OUT, VDD, COMP to GND: -0.3 to 7 V; (3)FB input (Pin 5): -40 to 10 V; (4)Output Current at OUT: Internally limited A; (5)Power Dissipation at TA=25oC: 0.657 W; (6)Operating Junction Temperature: 150 ℃; (7)Storage Temperature: -65 to 150 ℃; (8)Lead Temperature (Soldering, 10s): 300 ℃; (9)Thermal Resistance Junction-to-Ambient: 190 ℃/W; (10)ESD (Machine Model): 200 V.

Features

GP2Y0A02YKF6 features: (1)Distance measuring range : 20 to 150 cm; (2)Analog output type; (3)Package size : 29.5×13×21.6 mm; (4)Consumption current : Typ. 33 mA; (5)Supply voltage : 4.5 to 5.5 V.

Diagrams

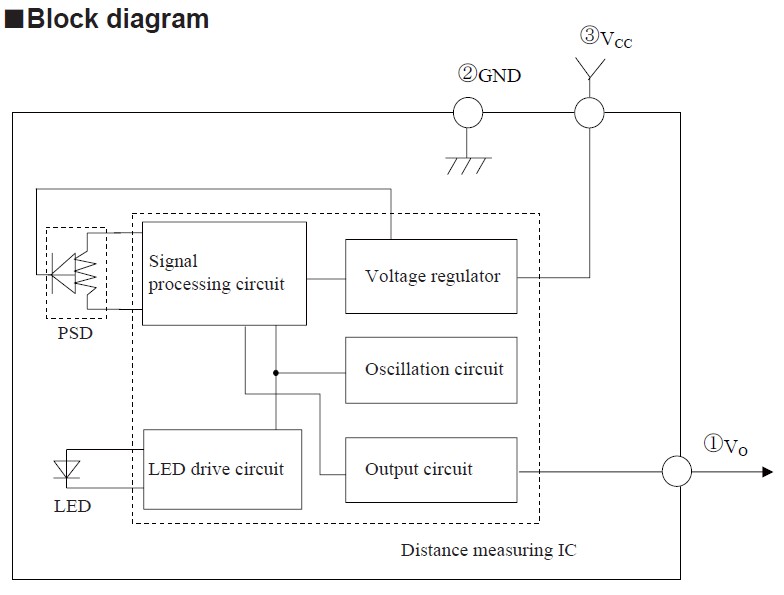

GP2Y0A02YKF6 pin connection
