Product Summary

The HFBR-2532 is a fiber optic link component for applications requiring a low cost solution. The applications of the HFBR-2532 include: (1)Reduction of Lightning/Voltage Transient Susceptibility; (2)Motor Controller Triggering; (3)Data Communications and Local Area Networks; (4)Electromagnetic Compatibility (EMC) for Regulated Systems: FCC, VDE, CSA, etc.; (5)Tempest-Secure Data Processing Equipment; (6)Isolation in Test and Measurement Instruments; (7)Error Free Signalling for Industrial and Manufacturing Equipment; (8)Automotive Communications and Control Networks; (9)Noise Immune Communication in Audio and Video Equipment.

Parametrics

HFBR-2532 absolute maxing ratings: (1)Storage Temperature TS: min=-40℃, max=+85℃; (2)Operating Temperature TA: min=-40℃, max=+85℃; (3)Lead Soldering Cycle Temp.: max=260℃; Time: max=10 sec; (4)Supply Voltage VCC: min=-0.5V, max=7V ; (5)Output Collector Current IOAV: max=25mA; (6)Output Collector Power Dissipation POD: max=40mW; (7)Output Voltage VO: min=-0.5V, max=18V; (8)Pull-up Voltage VP: min=-5V, max=VCC V; (9)Fan Out (TTL) N: max=5.

Features

HFBR-2532 features: (1)Low Cost Fiber Optic Components; (2)Enhanced Digital Links dc-5 MBd; (3)Extended Distance Links up to 120 m at 40 kBd; (4)Low Current Link: 6 mA Peak Supply Current; (5)Horizontal and Vertical Mounting; (6)Interlocking Feature; (7)High Noise Immunity; (8)Easy Connectoring Simplex, Duplex, and Latching Connectors; (9)Flame Retardant; (10)Transmitters Incorporate a 660 nm Red LED for Easy Visibility; (11)Compatible with Standard TTL Circuitry.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

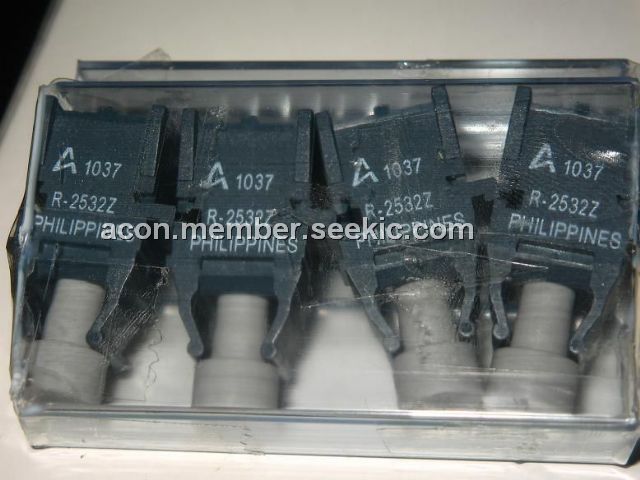

HFBR-2532
HFBR-2532

Avago Technologies

Fiber Optic Transmitters, Receivers, Transceivers VERSATILE LINK VERTI CAL 1MBd RCVR

Data Sheet

Negotiable
HFBR-2532Z
HFBR-2532Z

Avago Technologies

Fiber Optic Transmitters, Receivers, Transceivers V-LINK VERTICAL 1MBd RCVR RoHS

Data Sheet

0-1: $6.34
1-25: $5.23
25-100: $4.75
100-250: $4.60
