Product Summary

The K6R4004C1D-JC10 is a 4,194,304-bit high-speed Static Random Access Memory organized as 1,048,576 words by 4 bits. The K6R4004C1D-JC10 uses 4 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The K6R4004C1D-JC10 is fabricated using SAMSUNG advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications.

Parametrics

K6R4004C1D-JC10 absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS:-0.5 to VCC+0.5 V; (2)Voltage on VCC Supply Relative to VSS:-0.5 to 7.0 V; (3)Power Dissipation:1.0 W; (4)Storage Temperature:-65 to 150 °C; (5)Operating Temperature:0 to 70 °C.

Features

K6R4004C1D-JC10 features: (1)Fast Access Time 10ns(Max.); (2)Low Power Dissipation: Standby (TTL): 20mA(Max.), (CMOS): 5mA(Max.), Operating: 65mA(Max.); (3)Single 5.0V±10% Power Supply; (4)TTL Compatible Inputs and Outputs.

Diagrams

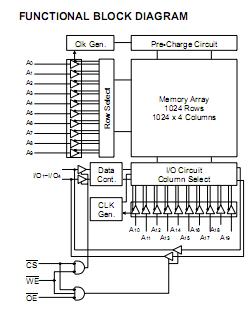

K6R4004C1D-JC10 block diagram
