Product Summary
The KTC9014 is a epitaxial planar NPN transistor.
Parametrics
KTC9014 absolute maximum ratings: (1)Collector-Base Voltage, VCBO: 60V; (2)Collector-Emitter Voltage, VCEO: 50V; (3)Emitter-Base Voltage, VEBO: 5V; (4)Collector Current, IC: 150mA; (5)Emitter Current, IE: 150mA; (6)Collector Power Dissipation, PC: 625mW; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature Range, Tstg: -55℃ to 150℃.
Features
KTC9014 features: (1)Excellent hFE Linearity: hFE(IC=0.1mA)/hFE(IC=2mA)=0.95(Typ.); (2)Low Noise :NF=1dB(Typ.) at f=1kHz; (3)Complementary to KTC9015.

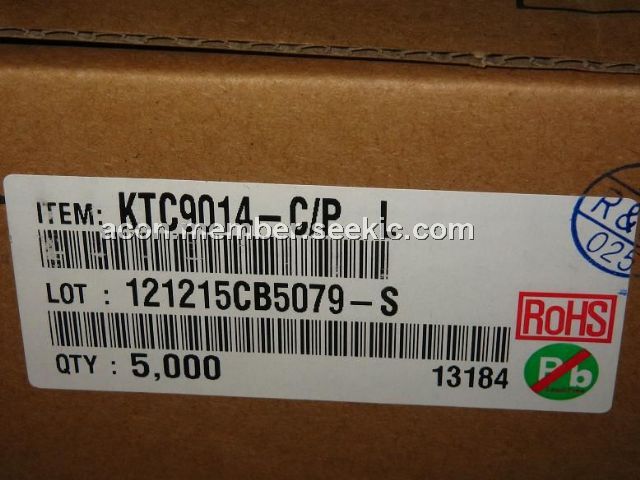

Diagrams
 |
