Product Summary

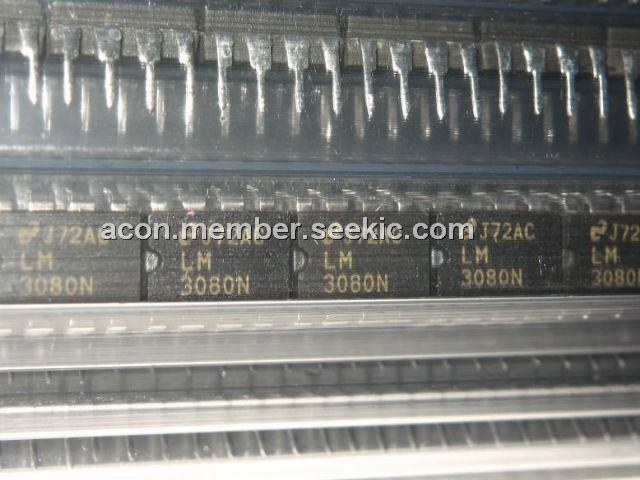

The LM3080N is a programmable transconductance block intended to fulfill a wide variety of variable gain applications. The LM3080N has differential inputs and high impedance push-pull outputs. The LM3080N has high input impedance and its transconductance (gm) is directly proportional to the amplifier bias current (IABC). High slew rate together with programmable gain make the LM3080N an ideal choice for variable gain applications such as sample and hold, multiplexing, filtering, and multiplying.

Parametrics

LM3080N absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 250mW; (3)Differential Input Voltage: ±5V; (4)Amplifier Bias Current (IABC): 2mA; (5)DC Input Voltage: +VS to -VS; (6)Output Short Circuit Duration: Indefinite; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM3080N features: (1)Slew rate (unity gain compensated): 50 V/ms; (2)Fully adjustable gain: 0 to gm # RL limit; (3)Extended gm linearity: 3 decades; (4)Flexible supply voltage range: 2V to 18V; (5)Adjustable power consumption.

Diagrams

LM3080N Schematic
