Product Summary
The cgd914 is a Hybrid amplifier module in a SOT115J package operating with a voltage supply of 24 V (DC), employing both GaAs
and Si dies.
Parametrics
cgd914 absolute maximum ratings: (1)VB supply voltage: 30 V; (2)Vi RF input voltage, single tone: 70 dBmV; 132 channels flat: 45 dBmV; (3)Tstg storage temperature: -40 to +100 ℃; (4)Tmb operating mounting base temperature: -20 to +100 ℃.
Features
cgd914 features: (1)Excellent linearity; (2)Extremely low noise; (3)Excellent return loss properties; (4)Rugged construction; (5)Gold metallization ensures excellent reliability.

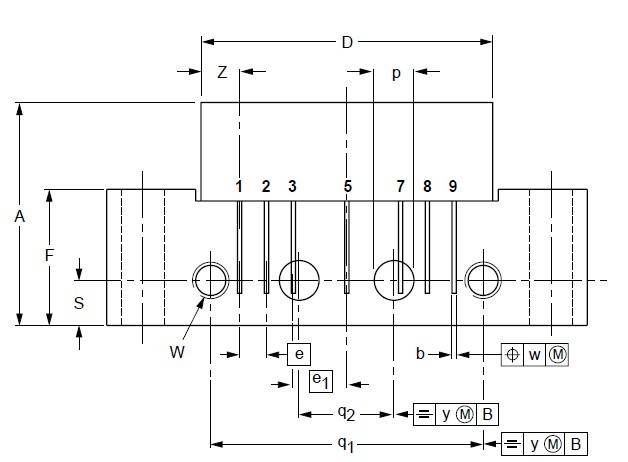

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CGD914 |
NXP Semiconductors |
RF Amplifier BULK CATV |
Data Sheet |
Negotiable |
|
||||
 |
CGD914,112 |
|
IC AMP GAIN POWER 860MHZ SOT115J |
Data Sheet |
Negotiable |
|
||||
|
CGD914MI |
Other |
|
Data Sheet |
Negotiable |
|
||||
