Product Summary

The LMS33460MG is an under voltage detector with a 3.0V threshold and extremely low power consumption. The LMS33460MG is specifically designed to accurately monitor power supplies. It is especially suited to battery powered systems where low quiescent current and small size are required. This IC generates an active output whenever the input voltage drops below 3.0 Volts. This part uses a precision on-chip voltage reference and a comparator to measure the input voltage. Built in hysteresis helps to prevent erratic operation in the presence of noise. The UVD is available in the ultra-miniature SC70-5 package.

Parametrics

Absolute Maximum Ratings: (1)Input Voltage to GND: 8.0V; (2)Output Voltage to GND: 8.0V; (3)Output Continuous Output Current: 30mA; (4)Vapor Phase IR Convection Reflow: 240℃; (5)Human Body Model: 2500V; (6)Machine Model: 200V; (7)TJMAX (Note 3): 150℃; (8)θJA (Note 3): 478℃/W.

Features

Features: (1)Ultra low Power; (2)3.0V detection; (3)VIN Range: 0.8V to 7.0V; (4)Open drain output; (5)Ultra-small SC70-5 package; (6)Extended Temperature range (-40°C to 85°C); (7)Ultra Low Quiescent current (1μA typ).

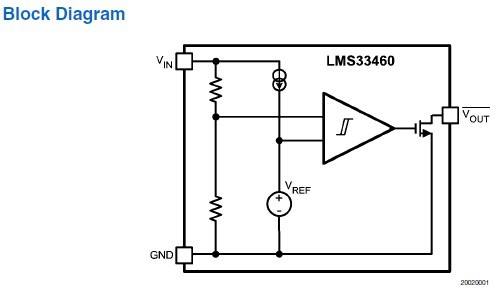

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LMS33460MG
LMS33460MG
National Semiconductor (TI)
Comparator ICs
Data Sheet
0-1000: $0.13
1000-3000: $0.13
3000-5000: $0.12
5000-10000: $0.10
LMS33460MG/NOPB
LMS33460MG/NOPB
National Semiconductor (TI)
Comparator ICs Under Vltg Detector
Data Sheet
0-1: $0.43
1-25: $0.31
25-100: $0.27
100-250: $0.23
LMS33460MGX/NOPB
LMS33460MGX/NOPB

IC DETECTOR UNDER VOLT 3V SC70-5
Data Sheet
Negotiable
