Product Summary
The LV2105V is a PLL frequency synthesizer Bi-CMOS LSI that provides low-voltage operation and low current drain, and that is suitable for use in a variety of radio equipment.
Parametrics
LV2105V absolute maximum ratings: (1)Maximum supply voltage:–0.3 to +6.0 V; (2)Maximum input voltage:–0.3 to VCC+0.3 V; (3)Maximum output voltage:–0.3 to +9.0 V; (4)Maximum output current: 0 to +1.0 mA; (5)Allowable power dissipation:230 mW; (6)Operating temperature: –40 to +85 °C; (7)Storage temperature:–50 to +125 °C.
Features
LV2105V features: (1)Low operating voltage: (VCC = 2.5 to 5.5 V); (2)Low current drain (5.5 mA); (3)Compact package (SSOP16, 0.65 mm pitch); (4)VCO band switching data output port on chip; (5)Data can be input while in power saving mode; (6)Data input pin high level can be input at VCC or higher; (7)Independent setting of CP ON/OFF (high impedance) possible.

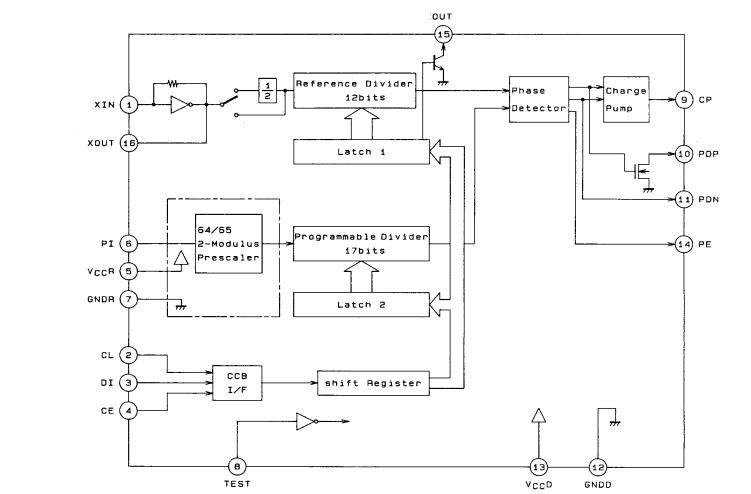

Diagrams
 |
