Product Summary

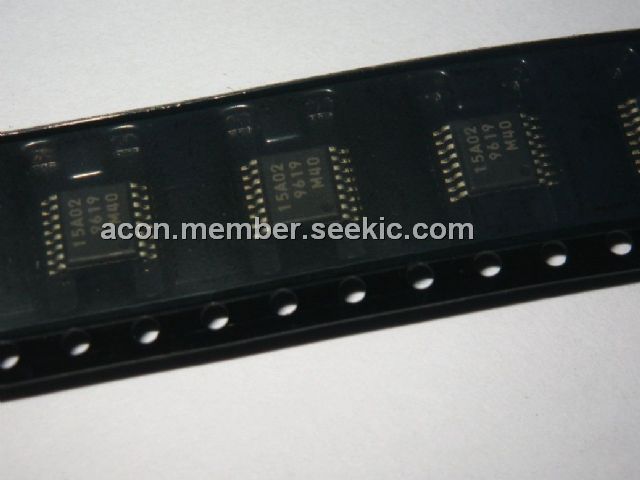

The Fujitsu MB15A02PFV2 , utilizing Bi-CMOS technology, is a tingle chip serial input PLL synthesizer with pulse-swallow function. The MB15A02PFV2 contains a 1 -1GHz two modulus prescaisr that can setect either a 64/65 or 128/129 cfvide ratio, control signal generator. 16-bit shift register, 15-bit latch, programmable reference divider (binary 14-bH programmable reference counter). 1-bit switch counter, phase comparator with phase reverse Taction, charge pump, crystal oscillator. 19-bit shift register, 18-bit latch, and programmable divider (binary 7-bit swallow counter and binary 11 -bit programmable counter).

Parametrics

MB15A02PFV2 absolute maximum ratings: (1)Power Supply Voltage: Vcc -0.5 to+7.0V; Vr: Vcc to 8.0V; (2)Output Voltage VoilT: -0.5 to Voc +0.5 V; (3)Open-draln Voltage VOOP: -0.5 to 6.0 V; (4)Output Current IGUT: ±10mA; (5)Storage Temperature TSTO: -55 to+125 °C.

Features

MB15A02PFV2 features: (1)Putee swallow function: 64/65 or 128/129; (2)Low supply current lcc*7mA typ.; (3)Serial input 18-bit programmable divider consisting o#:; (4)Binary 7-bit swallow counter: 0 to 127; (5)Binary 11-bit programmable counter: 16 to 2,047.

Diagrams

MB15A02PFV2 pin connection
