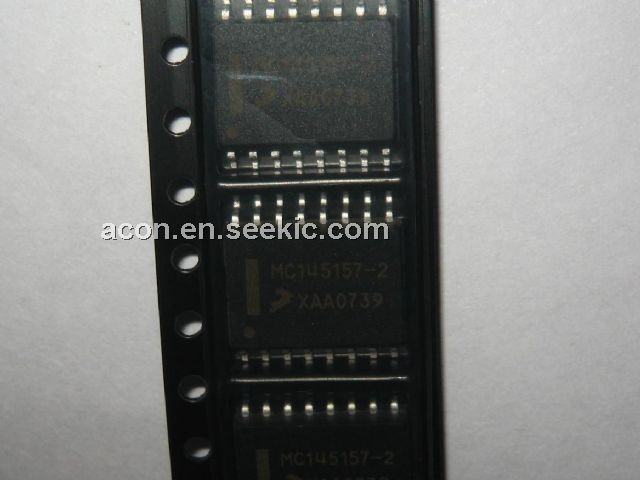

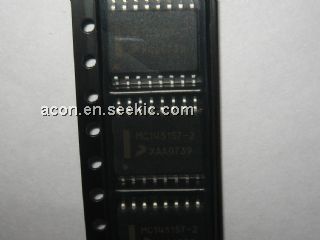

MC145157-2

MC145157-2, frequency synthesizer, 10.0 V, 10 mA, COF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.50 / Piece

PartNumber:: MC145157-2

Brand:: Motorola, Inc - Motorola | Pack: COF | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Laneya's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-27

From Other Seller

Part Number:MC145157-2
US $0.50 - 0.50
Quantity:

piece

Product Summary

The MC145157–2 is a parallel-input PLL frequency synthesizer. The MC145157-2 has a programmable 14–bit reference counter, as well as a fully programmable ÷ N counter. The counters are programmed serially through a common data input and latched into the appropriate counter latch, according to the last data bit (control bit) entered.

Parametrics

MC145157-2 absolute maximum ratings: (1)DC Supply Voltage: – 0.5 to + 10.0 V; (2)Input or Output Voltage (DC or Transient)except SW1, SW2: –0.5 to VDD +0.5 V; (3)Output Voltage (DC or Transient), SW1, SW2 (Rpull–up = 4.7 kΩ): –0.5 to +15 V; (4)Input or Output Current (DC or Transient), per Pin: ± 10 mA; (5)Supply Current, VDD or VSS Pins: ± 30 mA; (6)Power Dissipation, per Package†: 500 mW; (7)Storage Temperature: – 65 to + 150 °C; (8)Lead Temperature, 1 mm from Case for 10 seconds: 260 °C.

Features

MC145157-2 features: (1)Operating Temperature Range: – 40 to 85°C; (2)Low Power Consumption Through Use of CMOS Technology; (3)3.0 to 9.0 V Supply Range; (4)Fully Programmable Reference and ÷ N Counters; (5)÷ R Range = 3 to 16383; (6)÷ N Range = 3 to 16383; (7)fV and fR Outputs; (8)Lock Detect Signal; (9)Compatible with the Serial Peripheral Interface (SPI)on CMOS MCUs; (10)Linearized Digital Phase Detector; (11)Single–Ended (Three–State)or Double–Ended Phase Detector Outputs; (12)Chip Complexity: 6504 FETs or 1626 Equivalent Gates.
