Product Summary

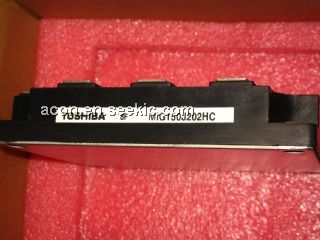

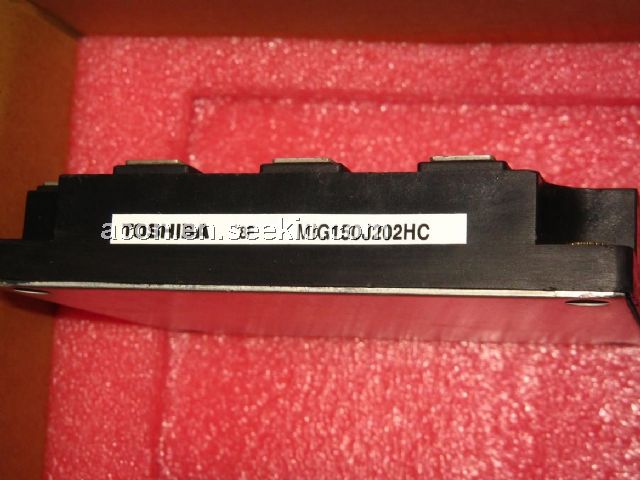

The MIG150J202HC is an N channel IGBT.

Parametrics

MIG150J202HC absolute maximum ratings: (1)Supply voltage, VCC: 450V; (2)Collector-emitter voltage, VCES: 600V; (3)Collector current, IC: 150A; (4)Forward current, IF: 150A; (5)Collector power dissipation, PC: 320W; (6)Junction temperature, Tj: 150℃; (7)Control supply voltage, VD: 20V; (8)Input voltage, VIN: 20V.

Features

MIG150J202HC features: (1)Integrates inverter power circuits & control circuits (IGBT drive units, protection units for over-current, under-voltage & over-temperature) in one package; (2)The electrodes are isolated from case; (3)High speed type IGBT: VCE=3.5V; toff=3.8μs, TRR=0.24μs; (4)Outline: TOSHIBA 2-121A1A; (5)Weight: 520g.

Diagrams

MIG150J202HC pin connection
