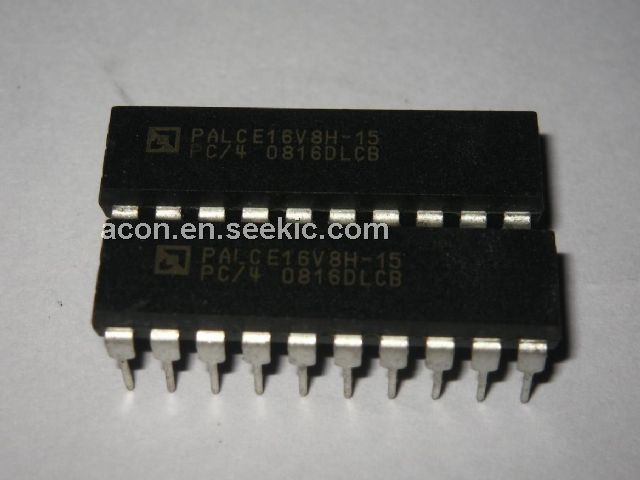

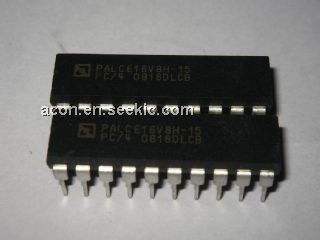

PALCE16V8H-15

PALCE16V8H-15, CMOS, 7.0 V, 100 mA, CFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.50 / Piece

PartNumber:: PALCE16V8H-15

Brand:: Advanced Micro Devices - AMD | Pack: CFP | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Laneya's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-28

From Other Seller

Part Number:PALCE16V8H-15
US $0.50 - 0.50
Quantity:

piece

Product Summary

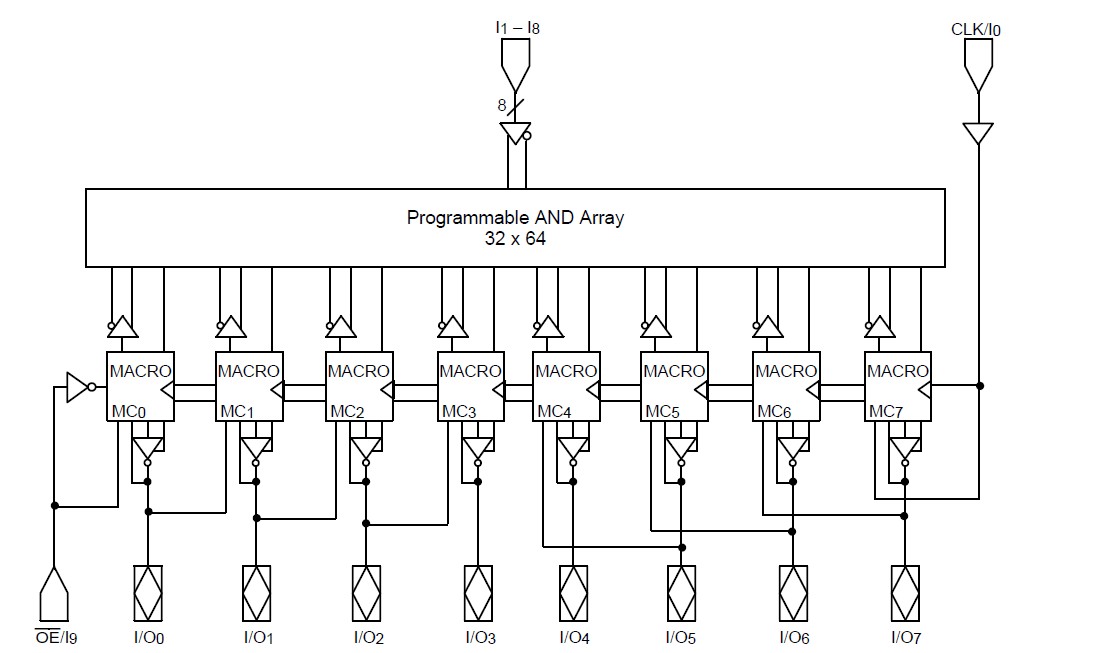

The PALCE16V8H-15 is an advanced PAL device built with low-power, high-speed, electrically-erasable CMOS technology. It is functionally compatible with all 20-pin GAL devices. The macrocells provide a universal device architecture. The PALCE16V8H-15 will directly replace the PAL16R8 and PAL10H8 series devices, with the exception of the PAL16C1.

Parametrics

PALCE16V8H-15 absolute maximum ratings: (1)Storage Temperature: –65°C to +150°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Supply Voltage with Respect to Ground: –0.5 V to +7.0 V; (4)DC Input Voltage: –0.5 V to VCC + 0.5 V; (5)DC Output or I/O Pin Voltage: –0.5 V to VCC + 0.5 V; (6)Static Discharge Voltage: 2001 V; (7)Latchup Current (TA = 0°C to 75°C): 100 mA.

Features

PALCE16V8H-15 features: (1)Programmable output polarity; (2)Programmable enable/disable control; (3)Preloadable output registers for testability; (4)Automatic register reset opower up; (5)Cost-effective 20-piplastic DIP, PLCC, and SOIC packages; (6)Extensive third-party software and programmer support through FusionPLD partners; (7)Fully tested for 100% programming and functional yields and high reliability; (8)5 ns versioutilizes a split leadframe for improved performance.
