Product Summary

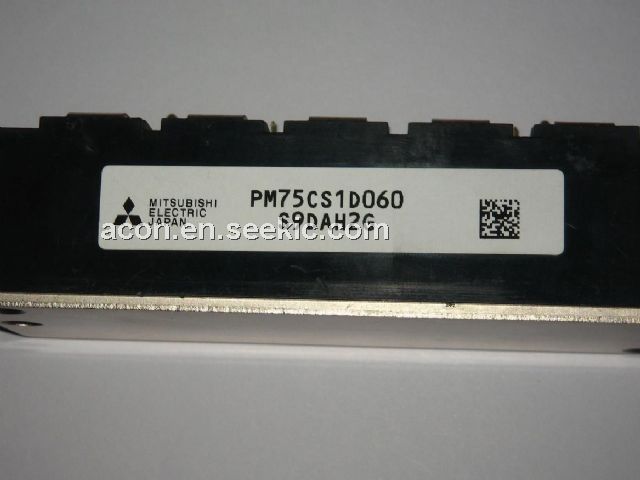

The PM75CS1D060S9DAH2G is an intelligent power modules flat-base type insulated package. Application is general purpose inverter, servo drives and other motor controls.
Parametrics
PM75CS1D060S9DAH2G absolute maximum ratings: (1)Collector-Emitter Voltage: 600 V; (2)Collector Current: 75 A; (3)Collector Current (Peak): 150 A; (4)Collector Dissipation: 378 W; (5)Junction Temperature: -20 to 150 ℃.
Features
PM75CS1D060S9DAH2G features: (1)3 phase 75A/600V CSTBTTM; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage.

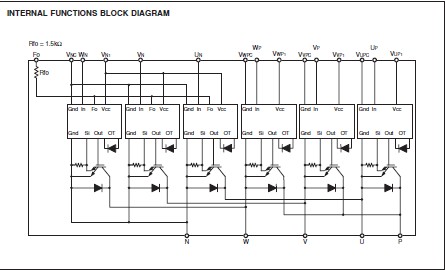

Diagrams
