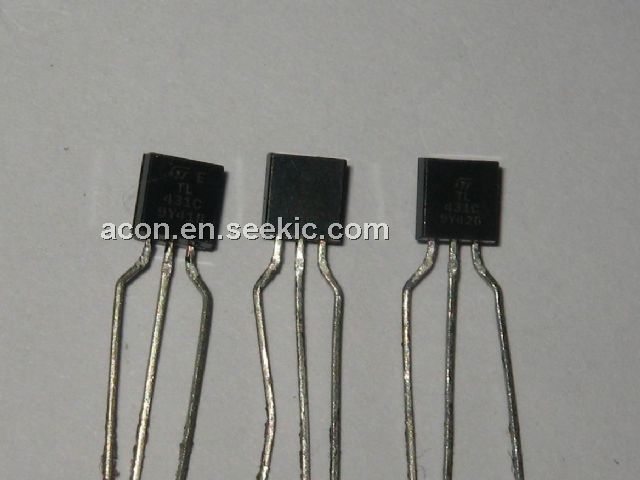

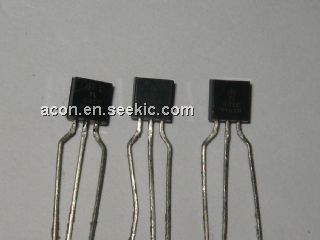

Product Summary
The TL431C is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature range. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors (see Figure 17). The TL431C have a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.
Parametrics
TL431C absolute maximum ratings: (1)Cathode voltage, VKA (see Note 1): 37 V; (2)Continuous cathode current range, IKA: −100 mA to 150 mA; (3)Reference input current range: −50 μA to 10 mA; (4)Operating virtual junction temperature, TJ: 150°C; (5)Storage temperature range, Tstg: −65°C to 150°C.
Features
TL431C features: (1)Low Output Noise; (2)0.2-Ω Typical Output Impedance; (3)Sink-Current Capability: 1 mA to 100 mA; (4)Adjustable Output Voltage.: Vref to 36 V; (5)Operation From: −40°C to 125°C; (6)Reference Voltage Tolerance at 25°C − 0.5%: B Grade; (7)Typical Temperature Drift (TL431B)− 6 mV (C Temp).

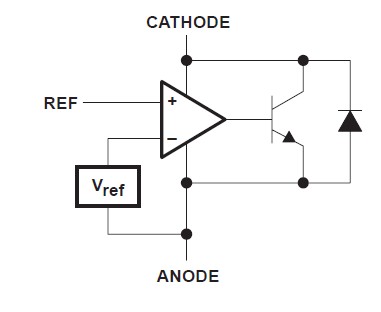

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL431CDBVR |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
|
|
|||||||||||||
TL431CDBZR |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
|||||||||||||
TL431CDE4 |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431CLPM |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
|||||||||||||
TL431CLPE3 |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431CLPREC |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431CDM |
IC VREF SHUNT PREC ADJ 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
TL431CKTPR |
Texas Instruments (VA) |
PRECISION SHUNT ADJUST REG 2-PFM |
Data Sheet |
Negotiable |
|
