Product Summary

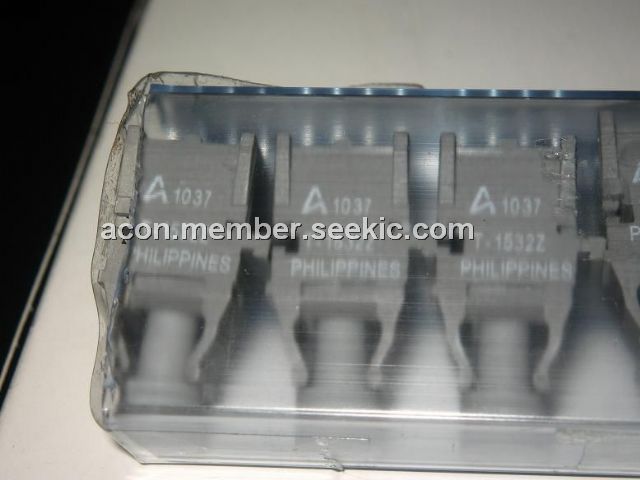

The HFBR-1532 is a fiber optic link component for applications requiring a low cost solution. The applications of the HFBR-1532 include: (1)Reduction of Lightning/Voltage Transient Susceptibility; (2)Motor Controller Triggering; (3)Data Communications and Local Area Networks; (4)Electromagnetic Compatibility (EMC) for Regulated Systems: FCC, VDE, CSA, etc.; (5)Tempest-Secure Data Processing Equipment; (6)Isolation in Test and Measurement Instruments; (7)Error Free Signalling for Industrial and Manufacturing Equipment; (8)Automotive Communications and Control Networks; (9)Noise Immune Communication in Audio and Video Equipment.
Parametrics
HFBR-1532 absolute maxing ratings: (1)Storage Temperature TS: min=-40℃, max=+85℃; (2)Operating Temperature TA: min=-40℃, max=+85℃; (3)Lead Soldering Cycle Temp.: max=260℃; Time: max=10 sec; (4)Forward Input Current IFPK: max=1000mA; IFdc: max=80mA; (5)Reverse Input Voltage VBR: max=5V.
Features
HFBR-1532 features: 1)Low Cost Fiber Optic Components; (2)Enhanced Digital Links dc-5 MBd; (3)Extended Distance Links up to 120 m at 40 kBd; (4)Low Current Link: 6 mA Peak Supply Current; (5)Horizontal and Vertical Mounting; (6)Interlocking Feature; (7)High Noise Immunity; (8)Easy Connectoring Simplex, Duplex, and Latching Connectors; (9)Flame Retardant; (10)Transmitters Incorporate a 660 nm Red LED for Easy Visibility; (11)Compatible with Standard TTL Circuitry.

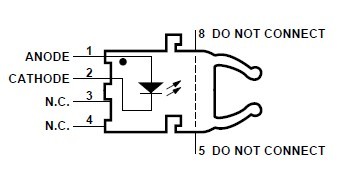

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HFBR-1532 |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers Versatile Link Vert MBd Tx |
Data Sheet |
Negotiable |
|
||||||||||||
|
HFBR-1532Z |
Avago Technologies |
Fiber Optic Transmitters, Receivers, Transceivers Versatile Link Vert MBd Tx RoHS |
Data Sheet |
|
|
||||||||||||
