Product Summary

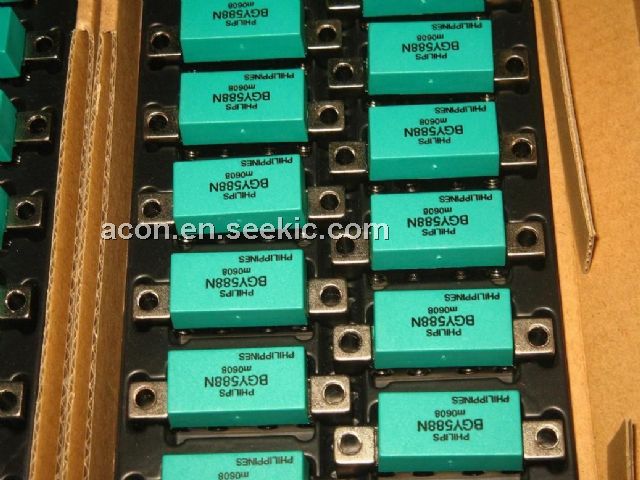

The BGY588Y is a CATV amplifier module.Hybrid amplifier module for CATV systems operating over a frequency range of 40 to 550 MHz at a voltage supply of +24 V (DC) and intended for use as a line-extender.
Parametrics
BGY588Y absolute maximum ratings: (1)RF input voltage: - 55 dBmV; (2)Storage temperature: -40 to +100 °C; (3)Mounting base operating temperature: -20 to +100 °C; (4)Total current consumption (DC)VB = +24 V: 340 mA; (5)Power gain: 33.5 to 35.5 dB.
Features
BGY588Y features: (1)Excellent linearity; (2)Extremely low noise; (3)Silicon nitride passivation; (4)Rugged construction; (5)TiPtAu metallized crystals ensure optimal reliability.

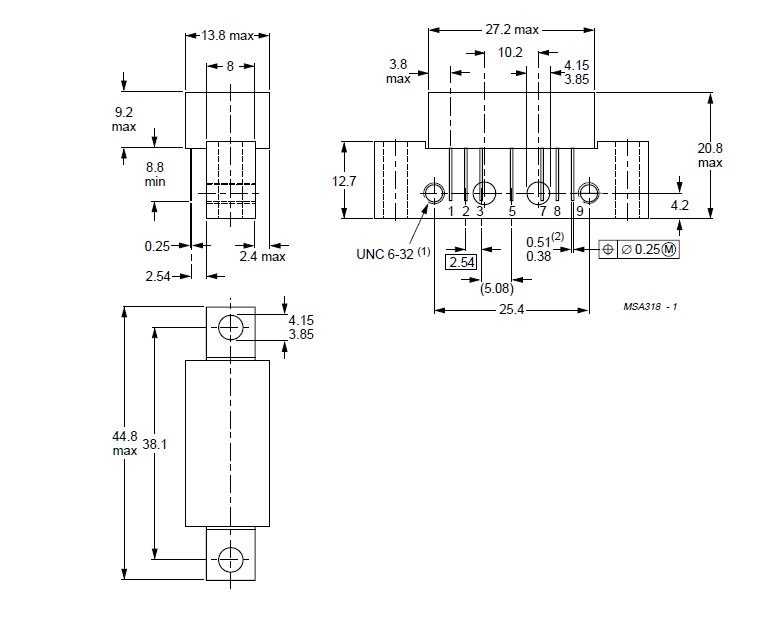

Diagrams
