Product Summary
The BS250 is a P-Channel 60-V (D-S) MOSFET. The applications of the device are Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc, Battery Operated Systems, Power Supply, Converter Circuits and Motor Control.
Parametrics
BS250 absolute maximum ratings: (1)Drain-Source Voltage, VDS: -60V; (2)Gate-Source Voltage, VGS: ±20V; (3)Continuous Drain Current, ID: -0.27A; (4)Continuous Drain Current, ID: -0.22 A; (5)Pulse Drain Current, IDM: -1.0A; (6)Power Dissipation, PD: 0.8W; (7)Maximum Junction-to-Ambient, RthJA: 156℃/W; (8)Operating Junction and Storage Temperature Range, TJ, Tstg: -55 to 150℃.
Features
BS250 features: (1)TrenchFET Power MOSFET; (2)ESD Protected: 2000 V.

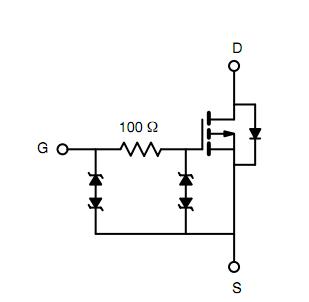

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BS250 |
Vishay/Siliconix |
MOSFET 45V 0.18A 0.83W |
Data Sheet |
Negotiable |
|
||||||||||||
|
BS250 SB36890\E6 |
Vishay Semiconductors |
MOSFET P-Channel 60V 0.25A |
Data Sheet |
Negotiable |
|
||||||||||||
|
BS250F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BS250FTA |
Diodes Inc. |
MOSFET P-Chnl 45V |
Data Sheet |
|
|
||||||||||||
|
BS250FTC |
Diodes Inc. / Zetex |
MOSFET P-Chnl 45V |
Data Sheet |
|
|
||||||||||||
|
BS250KL |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BS250KL-TR1 |
Vishay/Siliconix |
MOSFET 60V 0.27A 0.8A |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BS250KL-TR1-E3 |
Vishay/Siliconix |
MOSFET 60V 0.27A 0.8W |
Data Sheet |
Negotiable |
|
||||||||||||
