Product Summary

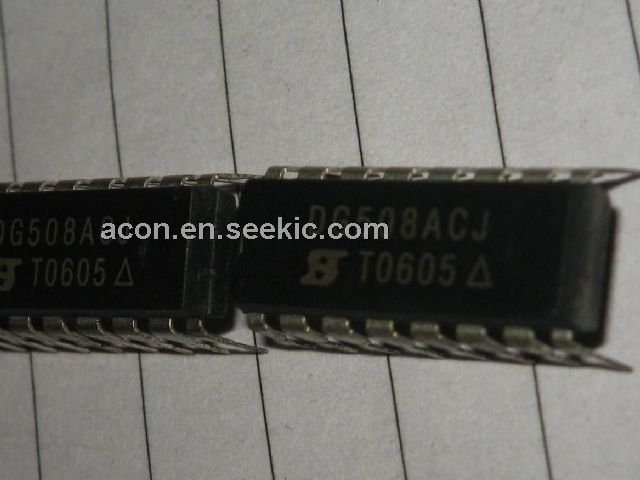

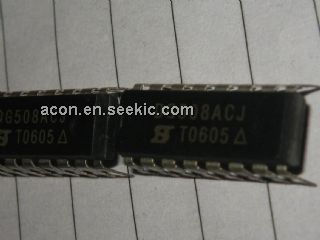

The DG508ACJ is a CMOS Monolithic 8-Channel Analog Multiplexer, which can also be used as a demultiplexer. An enable input is provided. When the enable input is high, a channel is selected by the address inputs, and when low, all channels are off. The DG508ACJ is pinout compatible with the industry standard devices. A channel in the ON state conducts current equally well in both directions. In the OFF state each channel blocks voltages up to the supply rails. The address inputs and the enable input are TTL and CMOS compatible over the full specified operating temperature range. The applications of the DG508ACJ are Data Acquisition Systems, Communication Systems, Signal Multiplexing/Demultiplexing, Audio Signal Multiplexing.

Parametrics

DG508ACJ absolute maximum ratings: (1)V+ to V-:44V; (2)V- to Ground:25V; (3)Digital Inputs, VS, VD:(V- -2V) To (V+ +2V); (4)Continuous Current, (Any Terminal Except S or D):30mA; (5)Continuous Current, (S or D):20mA; (6)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max):40mA.

Features

DG508ACJ features: (1)Low Power Consumption; (2)TTL and CMOS-Compatible Address and Enable Inputs; (3)44V Maximum Power Supply Rating; (4)High Latch-Up Immunity; (5)Break-Before-Make Switching; (6)Alternate Source; (7)Pb-free Available.

Diagrams

DG508ACJ pin connection
