Product Summary

The M80C85A is a complete 8-bit parallel; central processor implemented in silicon gate C-MOS technology and compatible with MSM80C85A. It is designed with higher processing speed (max 5 MHz) and lower power consumption compared with MSM80C85A and power down mode is provided, thereby offering a high level of system integration. The M80C85A uses a multiplexed address/data bus. The M80C85A address is split between the 8-bit address bus and the 8-bit data bus. The on-chip address latch: of a MSM81C55 memory product allows a direct interface with the MSM80C85AH.

Parametrics

M80C85A absolute maximum ratings: (1)Power Supply Voltage, VCC: –0.5 to 7 V; (2)Input Voltage, VIN: –0.5 to VCC +0.5 V; (3)Output Voltage, VOUT: –0.5 to VCC +0.5 V; (4)Storage Temperature, TSTG: –55 to +150℃; (5)Power Dissipation, PD: 0.7 W.

Features

M80C85A features: (1)Power down mode (HALT-HOLD); (2)Low Power Dissipation: 50mW(Typ); (3)Single + 3 to + 6 V Power Supply; (4)-40 to + 85℃, Operating Temperature; (5)Compatible with MSM80C85A; (6)0.8 μs instruction Cycle (VCC = 5V); (7)On-Chip Clock Generator (with External Crystal); (8)On-Chip System Controller; Advanced Cycle Status Information Available for Large System Control; (9)Bug operation in MSM80C85AH is fixed; (10)Four Vectored interrupt (One is non-maskable) Plus the 8080A-compatible interrupt.; (11)Serial, In/Serial Out Port; (12)Decimal, Binary and Double Precision Arithmetic; (13)Addressing Capability to 64K Bytes of Memory; (14)TTL Compatible; (15)40-pin Plastic DIP(DIP40-P-600-2.54): (Product name: MSM80C85AHRS); (16)44-pin Plastic QFJ(QFJ44-P-S650-1.27): (Product name: MSM80C85AHJS); (17)44-pin Plastic QFP(QFP44-P-910-0.80-2K): (Product name: MSM80C85AHGS-2K).

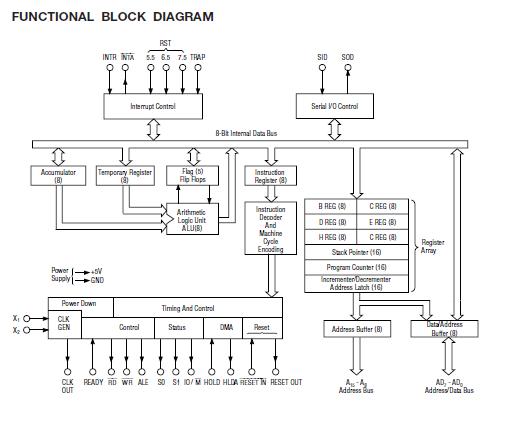

Diagrams

M80C85A pin connection
