Product Summary

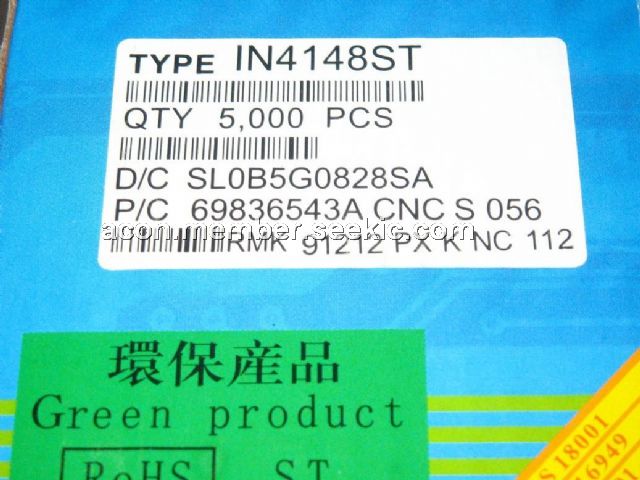

The 1N4148ST is a high speed switching diode.

Parametrics

1N4148ST absolute maximum ratings: (1)Maximum Repetitive Peak Reverse Voltage:100V; (2)Maximum Reverse Voltage:75V; (3)Maximum Average Forward Current:150mA; (4)Maximum Surge Forward Current:500 mA; (5)Maximum Forward Voltage:1.0 V.

Features

1N4148ST features: (1)Silicon Epitaxial Planar Diode; (2)High reliability; (3)Low reverse current; (4)Low forward voltage drop; (5)High speed switching ; (6)Pb / RoHS Free.

Diagrams

1N4148ST package dimensions
