Product Summary

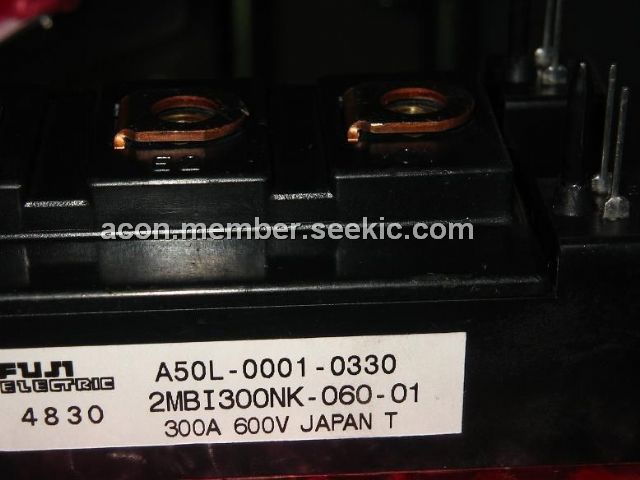

The 2MBI300NK-060-01 is an IGBT Module.
Parametrics
2MBI300NK-060-01 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 600V; (2)Gate-Emitter voltage VGES: ±20V; (3)Collector current, Continuous IC: 300A; 1ms IC pulse: 600A; (4)Max. power dissipation PC: 1100W; (5)Operating temperature Tj: +150℃; (6)Storage temperature Tstg: -40 to +125℃; (7)Isolation voltage Vis: AC 2500V (1min.); (8)Screw torque Mounting: 3.5 Nm; Terminals: 3.5N·m.
Features
2MBI300NK-060-01 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure.

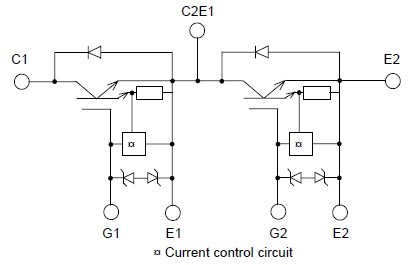

Diagrams
 |
