Product Summary

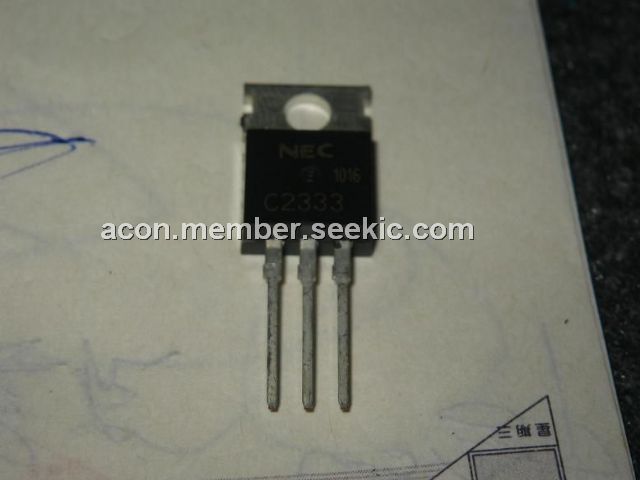

The 2SC2333 is NPN silicon diffused transistor designed fror switching regulator, DC-DC converter and ultrasonic appliance applications.
Parametrics
2SC2333 absolute maximum ratings: (1)Collector-base voltage Open emitter, VCBO: 500V ; (2)Collector-emitter voltage Open base, VCEO: 400V ; (3)Emitter-base voltage Open collector, VEBO: 7V ; (4)Collector current, IC: 2A ; (5)Collector current-peak, ICM: 4A ; (6)Base current, IB: 1A ; (7)Total power dissipation, TC=25℃, PT: 15W ; (8)Junction temperature, Tj: 150℃ ; (9)Storage temperature, Tstg: -55 to 150℃.
Features
2SC2333 features: (1)With TO-220C package; (2)High speed switching; (3)Low collector saturation voltage.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2333 |
Other |
|
Data Sheet |
Negotiable |
|
||||
