Product Summary

The mrf151g is designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of the mrf151g makes possible solid state transmitters for FM broadcast or TV channel frequency bands.

Parametrics

mrf151g maximum ratings: (1)Drain–Source Voltage :VDSS, 125 Vdc; (2)Drain–Gate Voltage: VDGO, 125 Vdc; (3)Gate–Source Voltage: VGS, ±40 Vdc; (4)Drain Current, Continuous: ID=40 Adc; (5)Total Device Dissipation: TC = 25℃, 500 W; ; (6)Derate above 25℃: 2.85 W/℃; (7)Storage Temperature Range: Tstg, –65 to +150℃; (8)Operating Junction Temperature: TJ, 200℃.

Features

mrf151g features: (1)Guaranteed Performance at 175 MHz, 50 V; (2)Output Power: 300 W; (3)Gain:14 dB (16 dB Typ); (4)Efficiency: 50%; (5)Low Thermal Resistance: 0.35℃/W; (6)Ruggedness Tested at Rated Output Power; (7)Nitride Passivated Die for Enhanced Reliability.

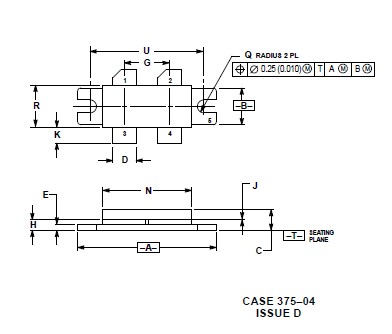

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

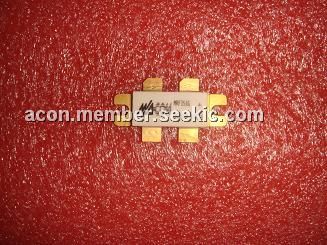

MRF151G
MRF151G

M/A-COM Technology Solutions

Transistors RF MOSFET Power 5-175MHz 300Watts 50Volt Gain 14dB

Data Sheet

0-1: $75.00
1-10: $72.60
10-25: $70.20
25-50: $56.73
